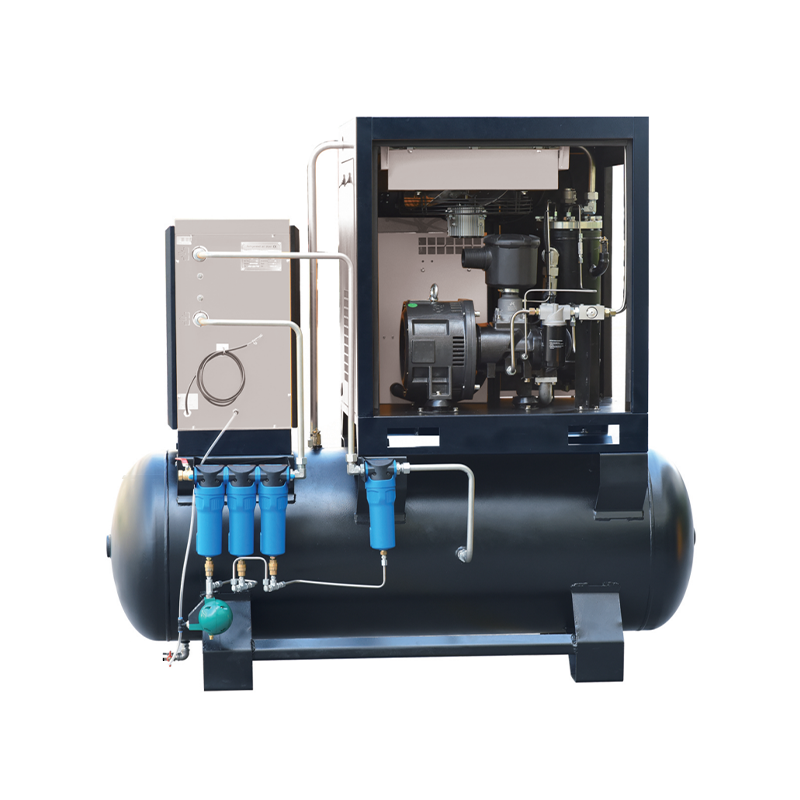

L-20PM/16Q — Screw 16bar for laser cutting use
Variable-speed control drive for energy saving & optimized running
- Installed over lE4 high-efficiency permanent-magnetic motor
- Variable-speed control drive for energy saving & optimized running
- IS0 8573.1 grade clean compressed air treatment system (Air Class 1-4-1)
- All-in-one system in compact sized system with low-pressure drop
- Screw Compressor
- L-20PM∕16Q
What can I do with a LIDA screw compressor?
The L-20PM/16Q from Lida Machine Equipment delivers dependable compressed air for industrial and workshop use, backed by the manufacturer's full specification sheet.
Make The Machine More User-Friendly
Easy To Move
Caster wheels and handles make repositioning the unit around the factory floor effortless.
Easy To Maintain
Accessible panels and a straightforward pump design keep servicing simple and downtime low.
Easy To Run
Clear voltage and pressure ratings make installation and daily operation straightforward.
Product Features
- Installed over lE4 high-efficiency permanent-magnetic motor
- Variable-speed control drive for energy saving & optimized running
- IS0 8573.1 grade clean compressed air treatment system (Air Class 1-4-1)
- All-in-one system in compact sized system with low-pressure drop
- Screw Compressor
- L-20PM∕16Q
- L-30PM∕16Q
- FreeAir Delivery m3∕min
Basic Parameters
| MODEL | FAD (M³/MIN) | PRESSURE (BAR) | POWER (KW) | WEIGHT (KG) | DIMENSIONS (MM) |
|---|---|---|---|---|---|
| L-20PM/16Q | 1.1 | 8-16 | 15 | 520 | 1900x875x1740 |
| L-30PM/16Q | 1.7 | 8-16 | 22 | 640 | 1900x970x1840 |
* Specifications are provided by the manufacturer and subject to change without prior notice.
