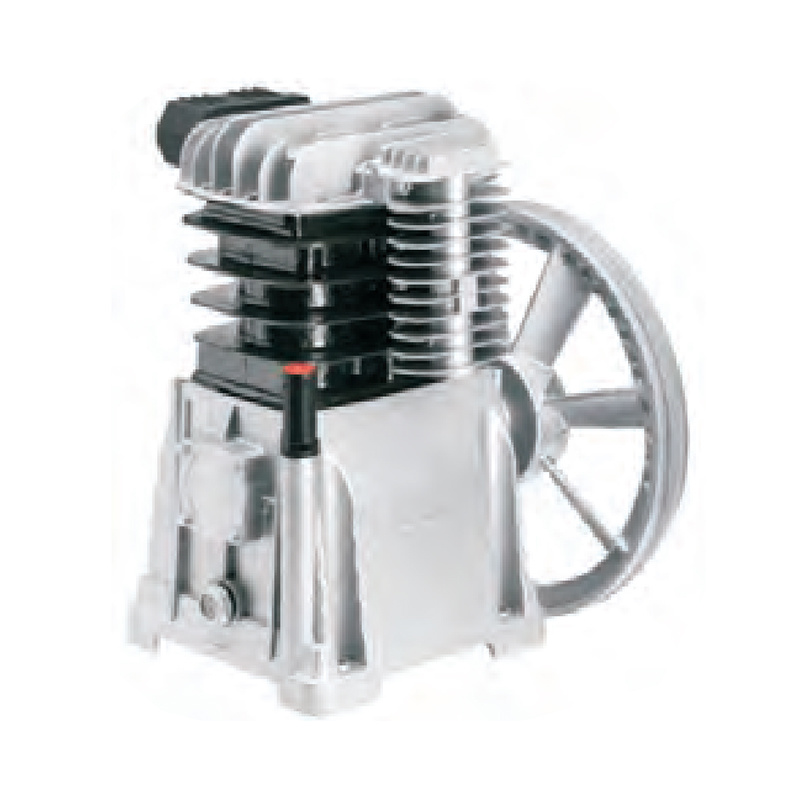

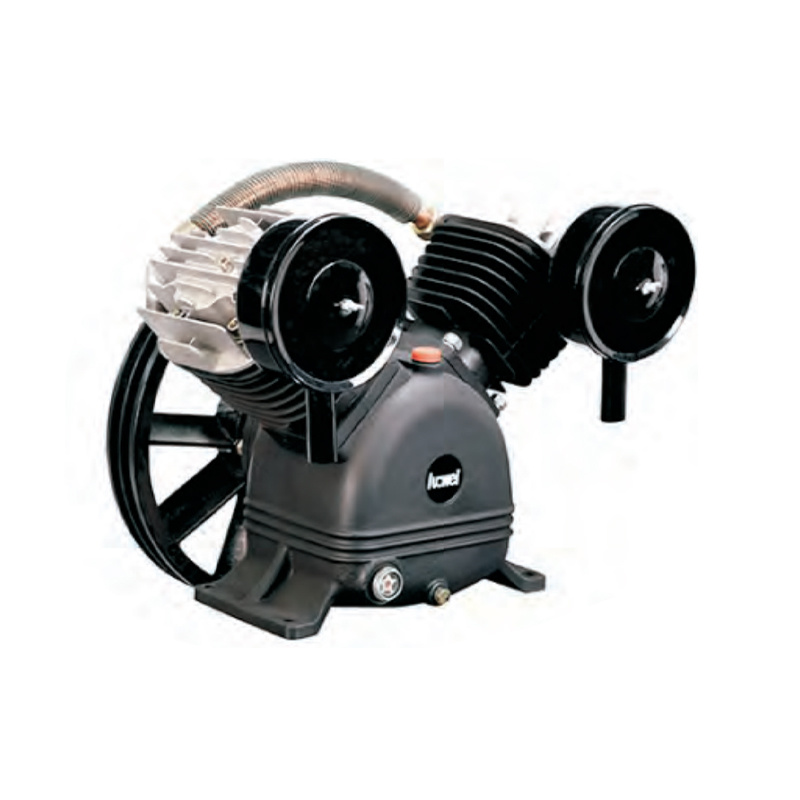

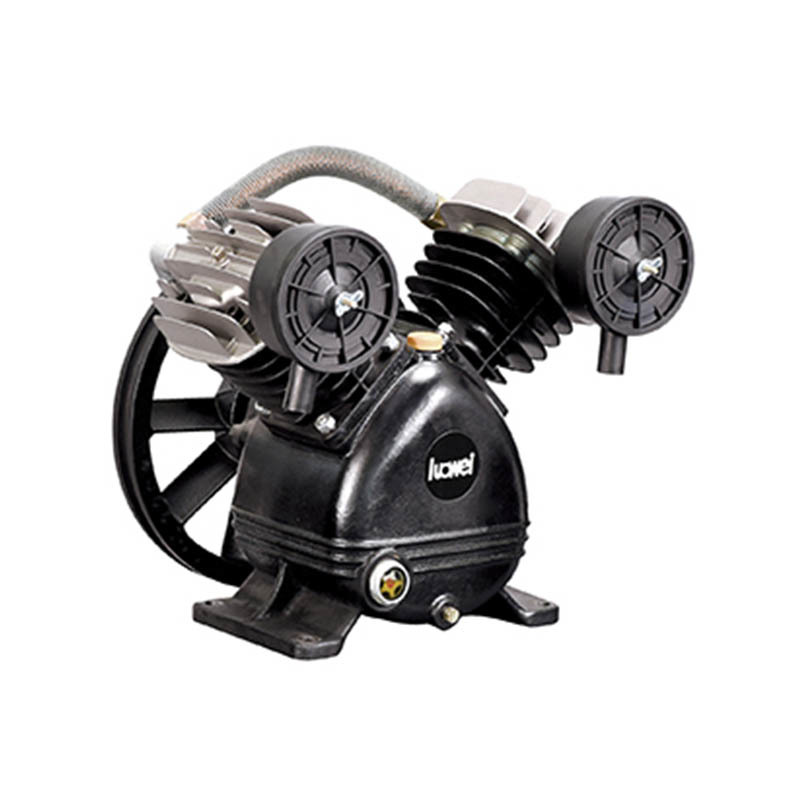

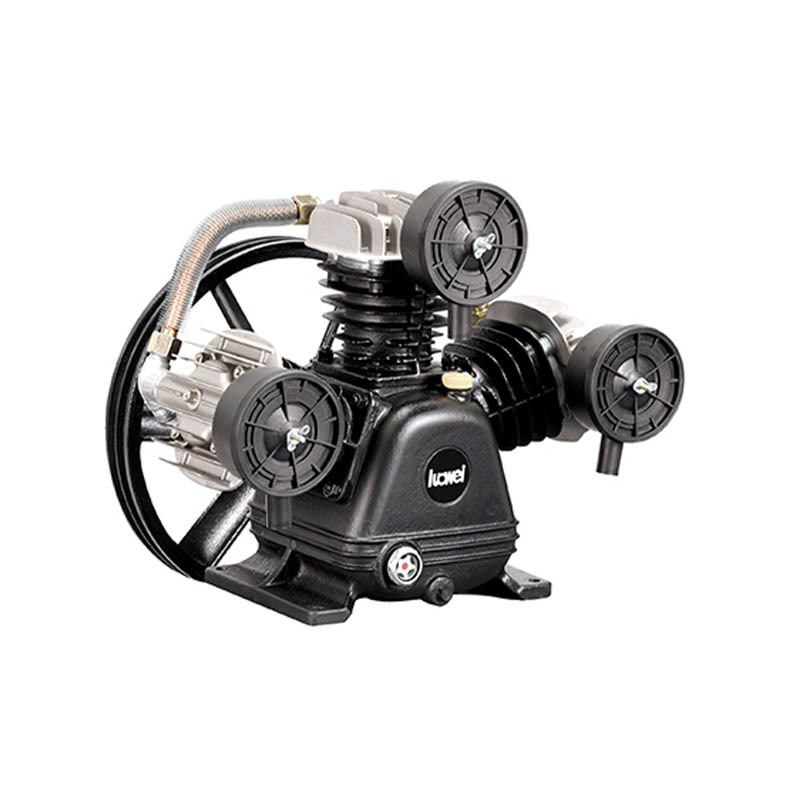

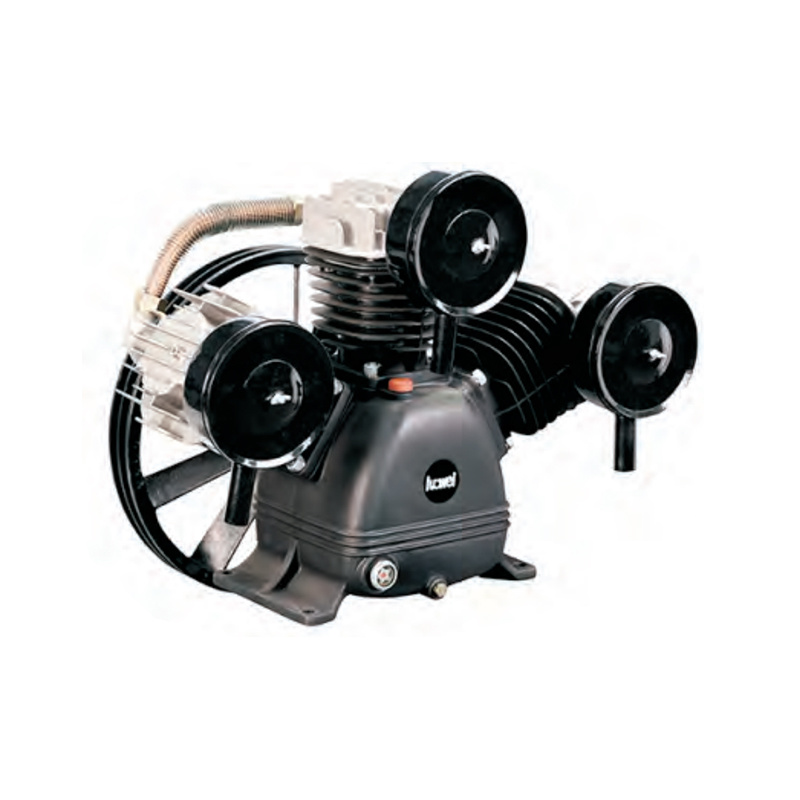

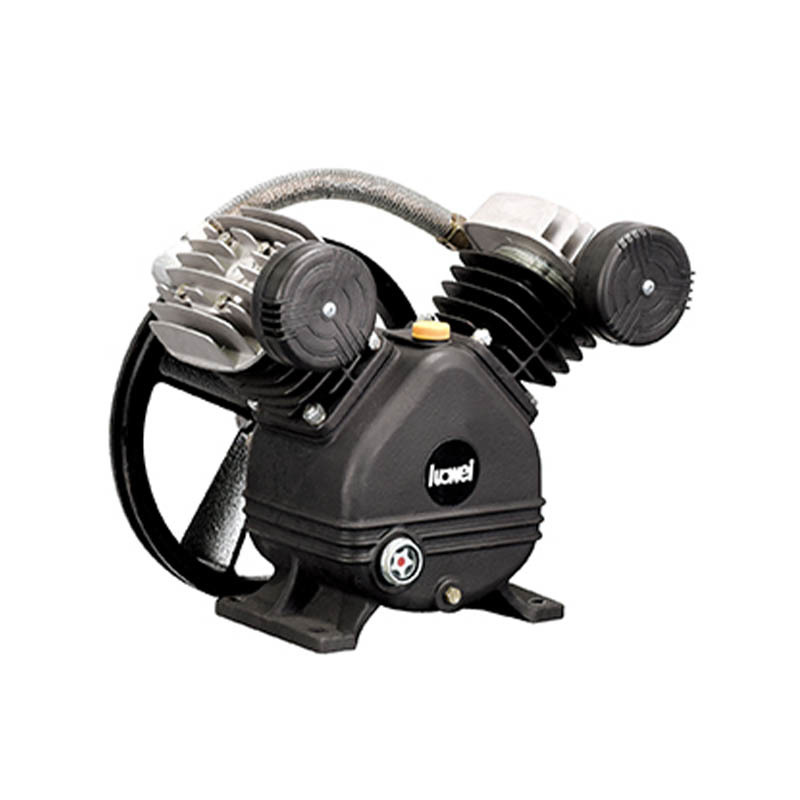

Single Stage Belt Driven Pumps
Back to Air Compressors
Air Compressors
Single Stage Belt Driven Pumps
Single-stage-belt-driven-pumps from Lida Machine Equipment, engineered for dependable industrial compressed air supply.
- 4009/4009N
- V0.40/V0.48
- 10bar Pressure
- Swedish stainless steel valve plate
- Low oil consumption
- Precise balanced crank shaftand flywheel for low vibration
What can I do with a LIDA air pump?
The Single Stage Belt Driven Pumps from Lida Machine Equipment delivers dependable compressed air for industrial and workshop use, backed by the manufacturer's full specification sheet.
Make The Machine More User-Friendly
Easy To Move
Caster wheels and handles make repositioning the unit around the factory floor effortless.
Easy To Maintain
Accessible panels and a straightforward pump design keep servicing simple and downtime low.
Easy To Run
Clear voltage and pressure ratings make installation and daily operation straightforward.
Product Features
- 4009/4009N
- V0.40/V0.48
- 10bar Pressure
- Swedish stainless steel valve plate
- Low oil consumption
- Precise balanced crank shaftand flywheel for low vibration
- Al head big cooling fin forlower temperature operation
Basic Parameters
| MODEL | PRODUCT NO. | HP | KW | MAX. PRESS. BAR | BORE MM | STROKE MM | NO. OF CYL. | RPM | DISPLACEMENT L/MIN CFM | DISPLACEMENT L/MIN CFM (2) | WEIGHT KG |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3008 | 6012055038000 | 2 | 1.5 | 10 | 55 | 38 | 2 | 1445 | 261 | 9.2 | 9.8 |
| 3008L | 6012060038000 | 2.2 | 1.65 | 10 | 60 | 38 | 2 | 1350 | 290 | 10.2 | 9.9 |
| 4009/ | 6012065058000 | 3 | 2.2 | 10 | 65 | 2 | 1086 | 418 | 15 | ||
| VO. 17 | 6012051046000 | 2.2 | 1.65 | 10 | 51 | 46 | 2 | 1250 | 235 | 8.3 | 17.5 |
| WO.36 | 6013065048000 | 3.0 | 2.2 | 10 | 65 | 48 | 3 | 945 | 452 | 15.9 | 26.9 |
| V0.40 | 6012080070000 | 5.5 | 4.0 | 10 | 80 | 70 | 2 | 850 | 598 | 21.1 | 35 |
| V0.48 | 6012090060000 | 5.5 | 4.0 | 10 | 90 | 60 | 2 | 920 | 702 | 24.8 | 41.4 |
| W0.9 | 6019080070000 | 10 | 7.5 | 10 | 90 | 70 | 3 | 950 | 1269 | 45 | 55.8 |
* Specifications are provided by the manufacturer and subject to change without prior notice.
