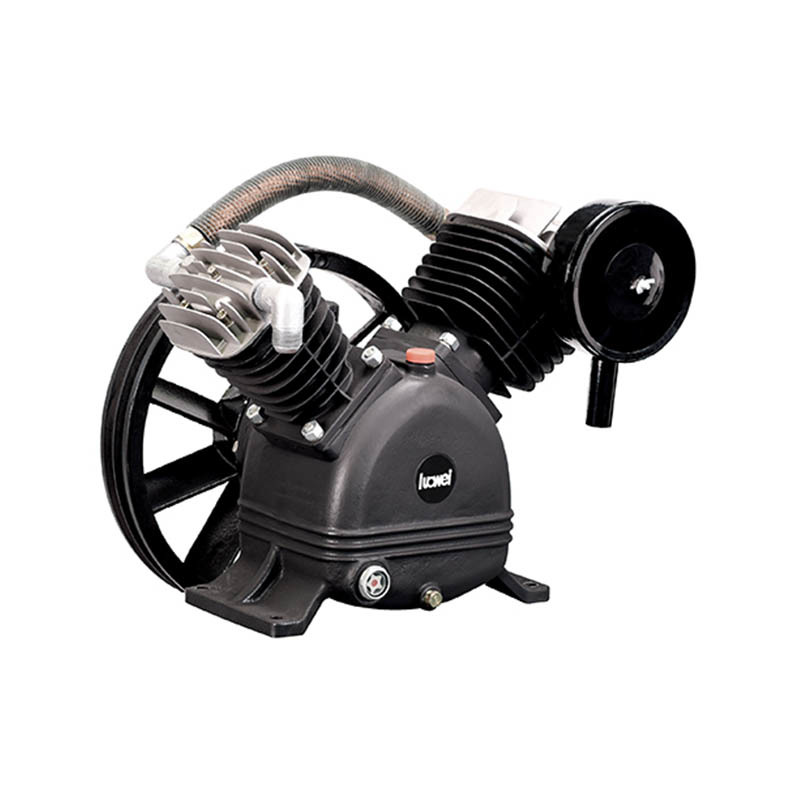

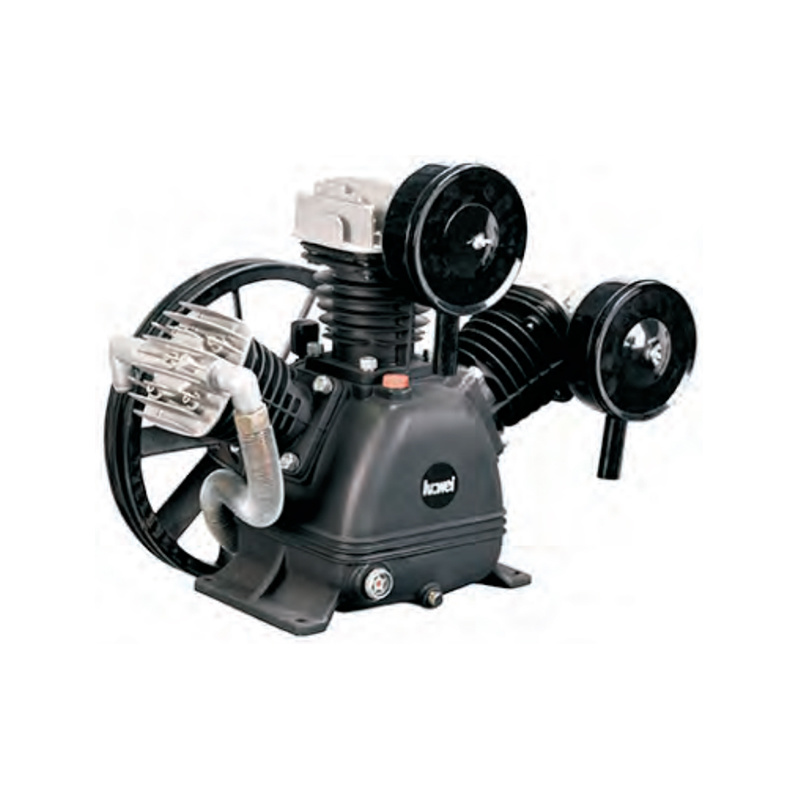

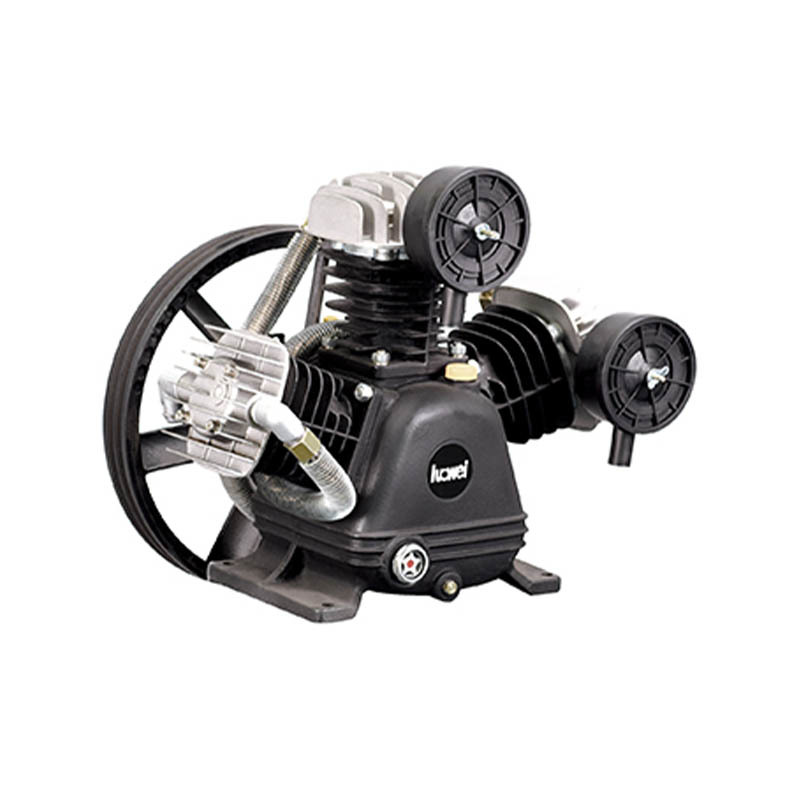

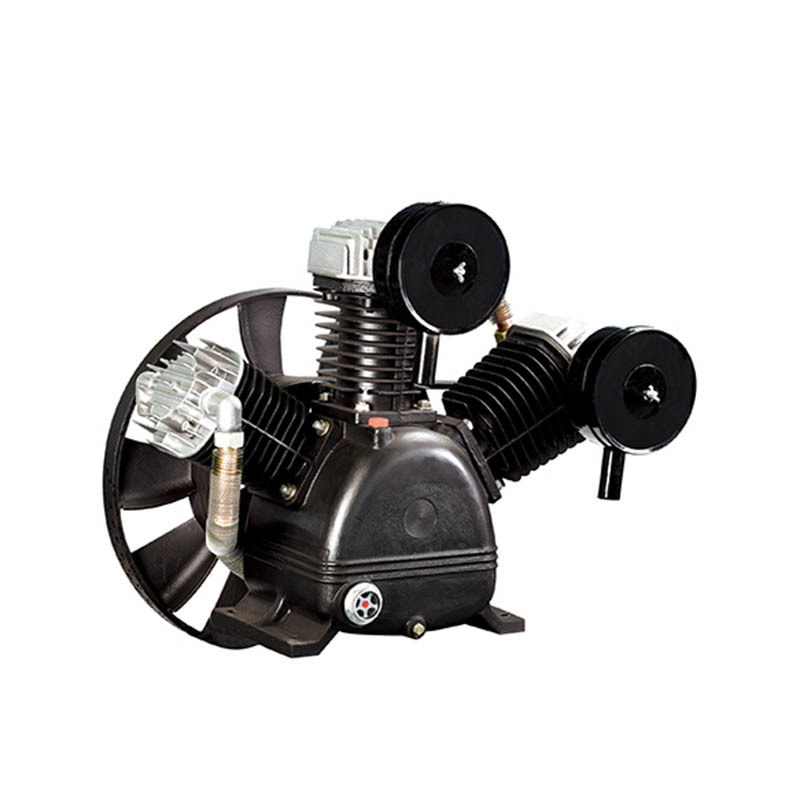

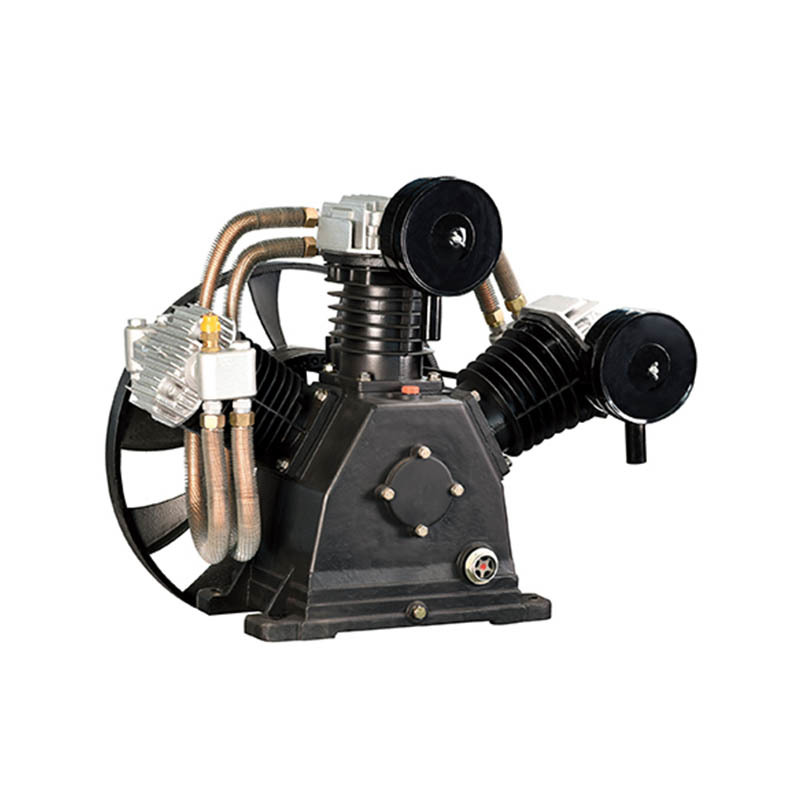

Two Stage Cast-Iron Pumps
Back to Air Compressors
Air Compressors
Two Stage Cast-Iron Pumps
Two-stage-Cast-iron-pumps from Lida Machine Equipment, engineered for dependable industrial compressed air supply.
- W0.30/12.5
- W0.60 & W0.80 /12.5
- W1.5/12.5
- 12.5bar Pressure
- Swedish stainless steel reed valve
- Low oil consumption
What can I do with a LIDA air pump?
The Two Stage Cast-Iron Pumps from Lida Machine Equipment delivers dependable compressed air for industrial and workshop use, backed by the manufacturer's full specification sheet.
Make The Machine More User-Friendly
Easy To Move
Caster wheels and handles make repositioning the unit around the factory floor effortless.
Easy To Maintain
Accessible panels and a straightforward pump design keep servicing simple and downtime low.
Easy To Run
Clear voltage and pressure ratings make installation and daily operation straightforward.
Product Features
- W0.30/12.5
- W0.60 & W0.80 /12.5
- W1.5/12.5
- 12.5bar Pressure
- Swedish stainless steel reed valve
- Low oil consumption
- Precise balanced crank shaftand flywheel for low vibration
- Al head with big cooling fin forlower temperature operation
Basic Parameters
| MODEL | PRODUCT NO. | HP | KW | MAX. PRESS. BAR | BORE*STROKE*CYL. | RPM | DISPLACEMENT L/MIN CFM | DISPLACEMENT L/MIN CFM (2) | WEIGHT KG |
|---|---|---|---|---|---|---|---|---|---|
| V0.20∕12.5 | 6012065051000 | 3.0 | 2.2 | 12.5 | Φ65*46*1∕Φ51*1 | 1250 | 191 | 6.7 | 17.6 |
| W0.30∕12.5 | 6013065046004 | 4.0 | 3.0 | 12.5 | Φ65*48*2∕Φ51*1 | 1150 | 366 | 13.0 | 25.5 |
| V0.40∕12.5 | 6012090060006 | 5.5 | 4.0 | 12.5 | Φ90*60*1∕Φ65*1 | 1280 | 488 | 17.3 | 41.4 |
| W0.60∕12.5 | 6013080060005 | 7.5 | 5.5 | 12.5 | Φ80*60*2∕Φ65*1 | 1180 | 712 | 25.2 | 50.1 |
| W0.80∕12.5 | 6013090070006 | 10 | 7.5 | 12.5 | Φ90*70*2∕Φ80*1 | 1100 | 980 | 34.6 | 55.8 |
| W-1.1/12.5 | 6013100100001 | 15 | 11 | 12.5 | Φ100*100*2/Φ 90*1 | 750 | 1178 | 41.6 | 100.7 |
| W-1.5/12.5 | 6013100100002 | 20 | 15 | 12.5 | Φ120*100*2∕Φ 100*1 | 750 | 1695 | 60 | 106.1 |
* Specifications are provided by the manufacturer and subject to change without prior notice.
