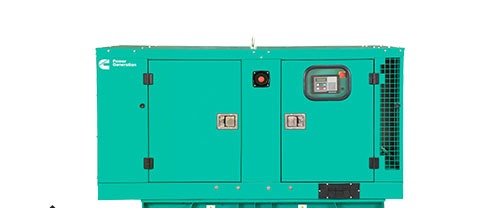

Cummins C22D5 Diesel Generator
A compact, robust generator combining fast load response with low emissions — well suited to remote sites and light industrial backup.
The Cummins C22D5 is built around the X2.5G2 engine for fast transient response and low emissions. Extended service intervals and a large fuel tank make it well suited for remote or unattended operation, while a heavy-duty, sound-attenuated canopy protects the unit from weather and reduces noise.
Standard Features
- Best-in-class transient response with low emissions
- Extended fuel, air, and lube filter service intervals
- Weatherproof, sound-attenuated canopy (≤77 dB(A) at 1 metre)
- PowerStart PS0600 microprocessor control panel
- Multiple voltage/phase alternator configurations for flexible deployment
Standard Specifications
Standby Rating22 kVA (18 kW)
Prime Rating20 kVA (16 kW)
EngineCummins X2.5G2
AlternatorStamford S0L2 series
Fuel TypeDiesel
Fuel Tank~150 Litres
Frequency50 Hz
Voltage230V (1-Phase) / 380–416V (3-Phase)
