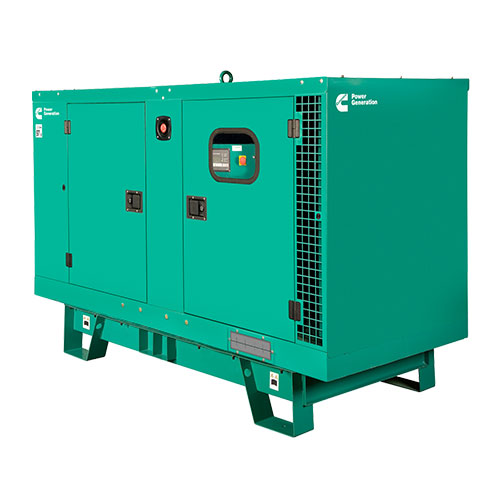

Cummins C38D5 Diesel Generator
A naturally-aspirated 4-cylinder genset positioned for small commercial and light industrial standby duty — shops, small offices, clinics, and light manufacturing.
The Cummins C38D5 uses a naturally-aspirated 4-cylinder X3.3-G1 engine for simplicity and low maintenance. Available in open or sound-attenuated, weather-protective enclosures, it is widely deployed across Africa, the Middle East, Asia Pacific, and South Asia for dependable commercial backup power.
Standard Features
- Naturally-aspirated 4-cylinder engine for simplicity and low maintenance
- Open or sound-attenuated, weather-protective enclosure options
- ISO 8528-compliant standby and prime ratings
- PowerCommand digital control platform
- Wide product availability across Asia and the Middle East
Standard Specifications
Standby Rating38 kVA (30.4 kW)
Prime Rating35 kVA (28 kW)
EngineCummins X3.3-G1
AlternatorPI144H, 3-Phase Wye
Fuel TypeDiesel
Frequency50 Hz
Voltage380–440V, 3-Phase
Weight (Enclosed)1,270 kg
