High Speed Computerized Electronic Jacquard Knitting Machine
Computerized Jacquard (mesh) single jersey circular knitting machine with 1.8 feeders / 2 feeders / 2.1 feeders per diametrical inch. Available with Two Ways or Three Ways Computerized Needle-Selecting system. The machine allows to produce various jacquard and mesh fabrics with infinite pattern possibilities.
- Advanced equipment support
- Advanced production technology
- High standard quality control and inspection
- Multiple optional devices
- High working speed
What can I do with YONTHIN circular knitting machine?
Imagination is infinite. As long as you can imagine, you can produce. Yonthin can be used to produce various jacquard mesh fabrics with an unlimited pattern range.
Why it's So Good at Precision Engineering?
Every factor that affects precision has been considered: electric control, motor, transmission system, assembly process, and hidden structural details.
Central lifting system
Compact structure, smooth lifting, adjusting fabric weight accurately and simply.
Cam material
Made of imported alloy steel with special heat treatment and CNC machining for smooth, durable needle motion.
Heart components
Strong interchangeability, can be quickly replaced, and easy to operate.
Sinkers
Precision-manufactured sinkers support stable knitting activity and faultless fabric output.
Electric machinery
High-performance motors and electrical systems ensure stable high-speed operation.

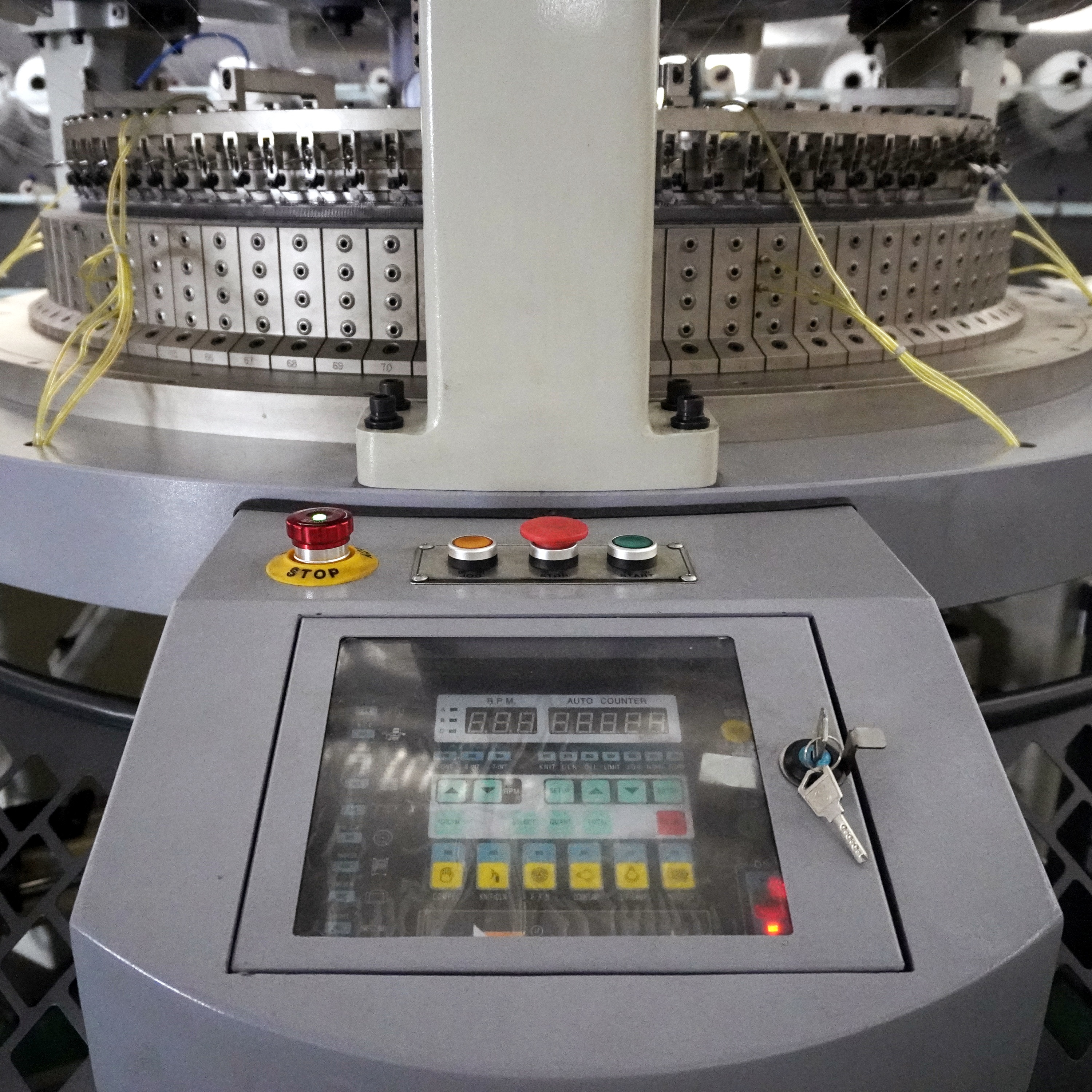

Computer control system
Easy system operation with computerized needle selection and USB pattern input.
Component Highlights
Central lifting system
Compact structure, smooth lifting, precise and simple adjustment of fabric weight.
Heart components
Strong interchangeability, quick replacement, easy to operate.
Computer control system
Easy system operation, computer needle selection system, USB input.
Product Features
- The machine adopts a computerized actuator to select needles on the needle cylinder with KNIT, TUCK, and MISS selection.
- Any complicated structure and design can be converted via the computerized pattern preparatory system and USB drive input.
- Equipped with an advanced computerized actuator ensuring stability, simple operation, and easy maintenance.
- Professionally designed CAM system ensuring high speeds with minimal needle breakage.
Basic Parameters
| Diameters | Feeders | Gauge | RPM |
|---|---|---|---|
| 30"-36" ∕ 1.8 feeders per inch | 54F-64F | 18G-32G | 15-25 R.P.M |
| 30"-44" ∕ 2 feeders per inch | 60F-72F | 18G-32G | 15-25 R.P.M |
| 30"-44" ∕ 2.4 feeders per inch | 64F-76F | 18G-32G | 15-25 R.P.M |
Equipment Configuration
| Standard Equipment | Optional Equipment |
|---|---|
| Feeding Units Specially Used For Computerized Jacquard | Lycra Attachment |
| Automatic Lubrication Device | Lycra Feeding Units |
| Needle And Fabric Detector | Folding Device |
| Take Down System | Yarn Input Measuring Device |
| Automatic Cleaning Device | Central Stitch System |
| Yarn Creel System | |
| Two/Three Position Needle-selecting System | |
| Electric Control Box Used For Computerized Jacquard |
