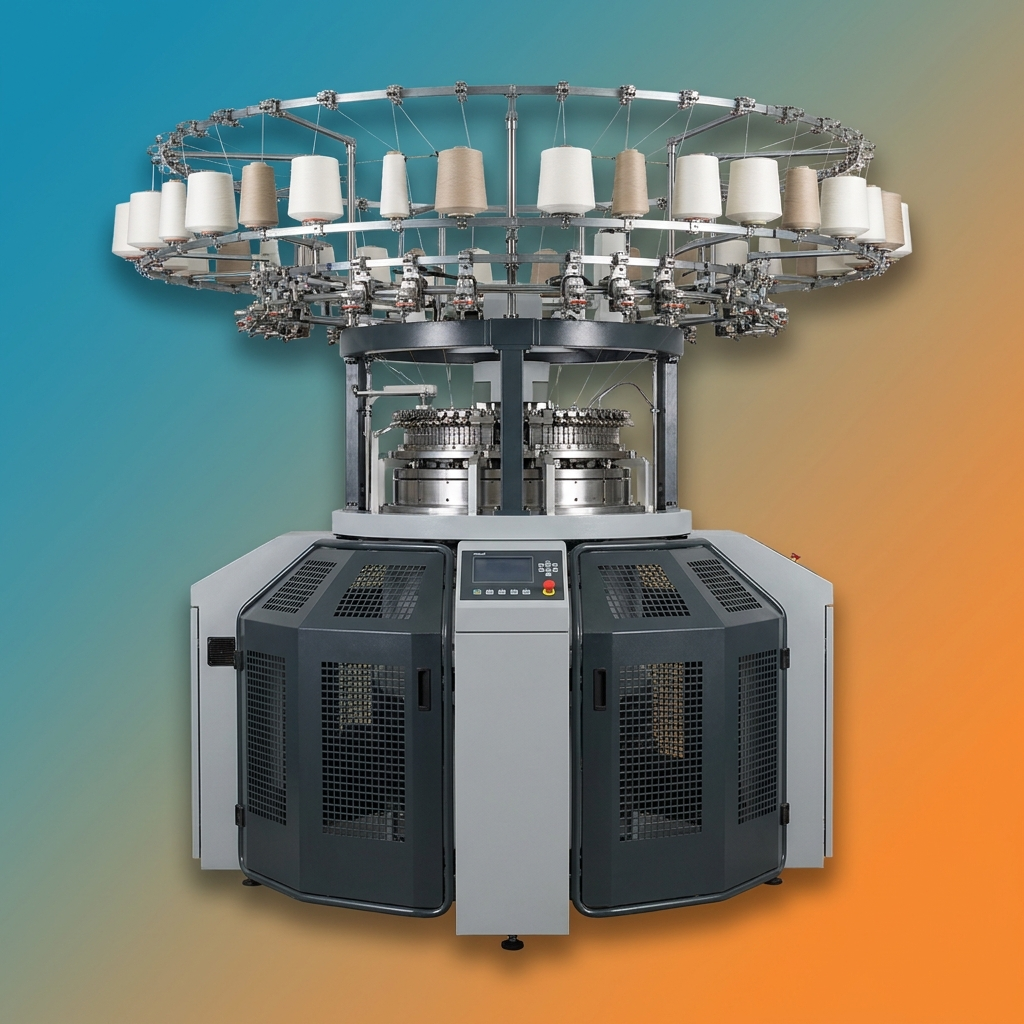

High Speed Double Jersey/Rib Knitting Machine
Knitting Machines
High Speed Double Jersey/Rib Knitting Machine
Multi-functional double jersey rib circular knitting machine with 2 feeders/2.1 feeders/2.4 feeders/2.8 feeders/3.2 feeders per diametrical inch. Cam box design to receive up to 4 tracks on the cylinder and 2 tracks on dial.
- Produces double jersey fabric, mesh fabric, sandwich fabric, or Roman fabric
- Advanced equipment support
- Advanced production technology
- High standard quality control
- Multiple optional devices
What can I do with YONTHIN circular knitting machine?
Imagination is infinite, as long as you can imagine, you can knit. Using Yonthin's sandwich health fabric, Roman fabric, mesh fabric, and other fabrics to make various clothing.
Why is it good at knitting?
Every factor affecting knitting accuracy has been taken into consideration. Control system, transmission system, motor, cam, etc. Where you cannot see are details.

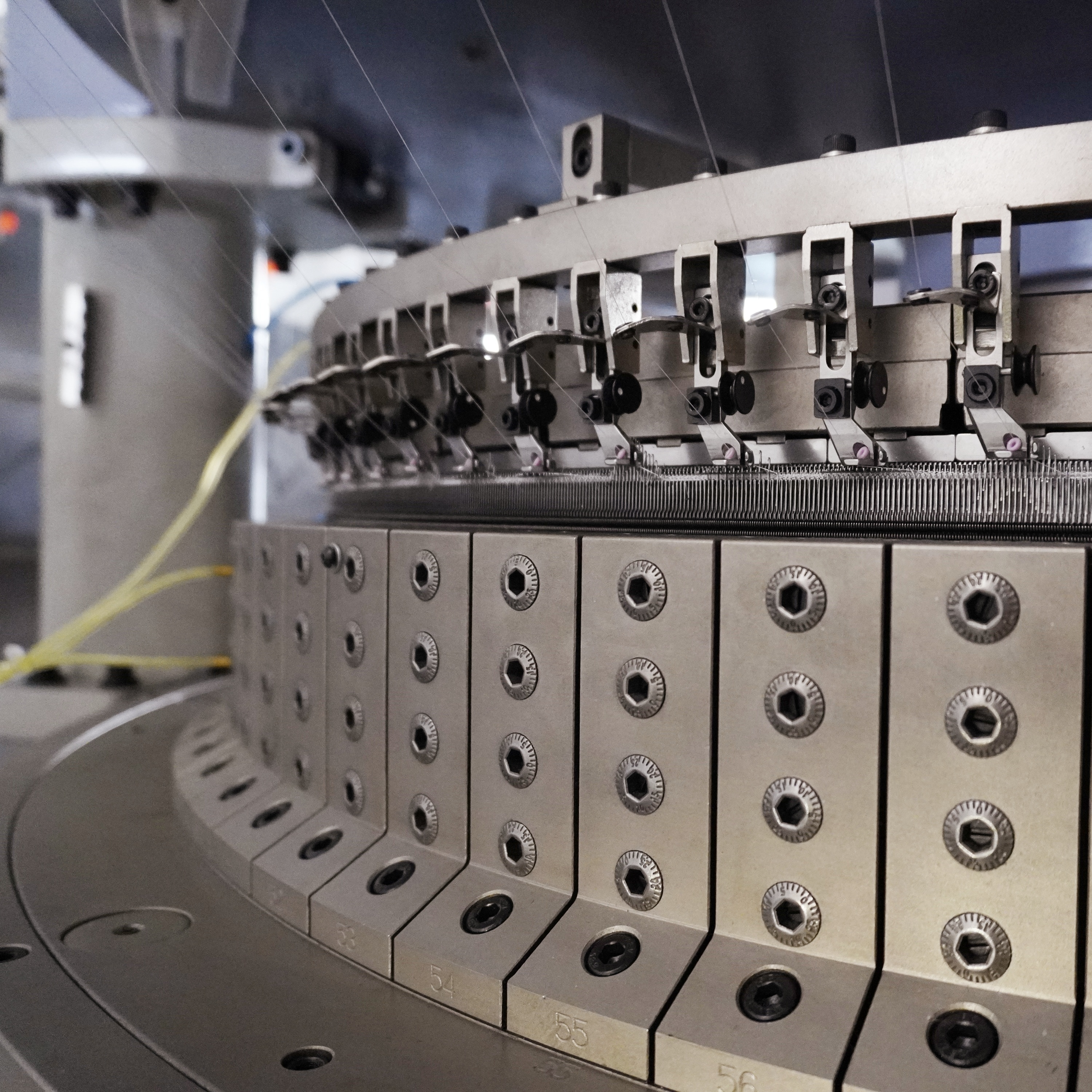

Cam material
Made of imported alloy steel; adopt imported special heat treatment; using Computer CAD/CAM to assist in design; less needle damage and high rotational speed.
Sinkers
Precision-manufactured sinkers support stable knitting activity and faultless fabric output.
Electric machinery
High-performance motors and electrical systems ensure stable high-speed operation.

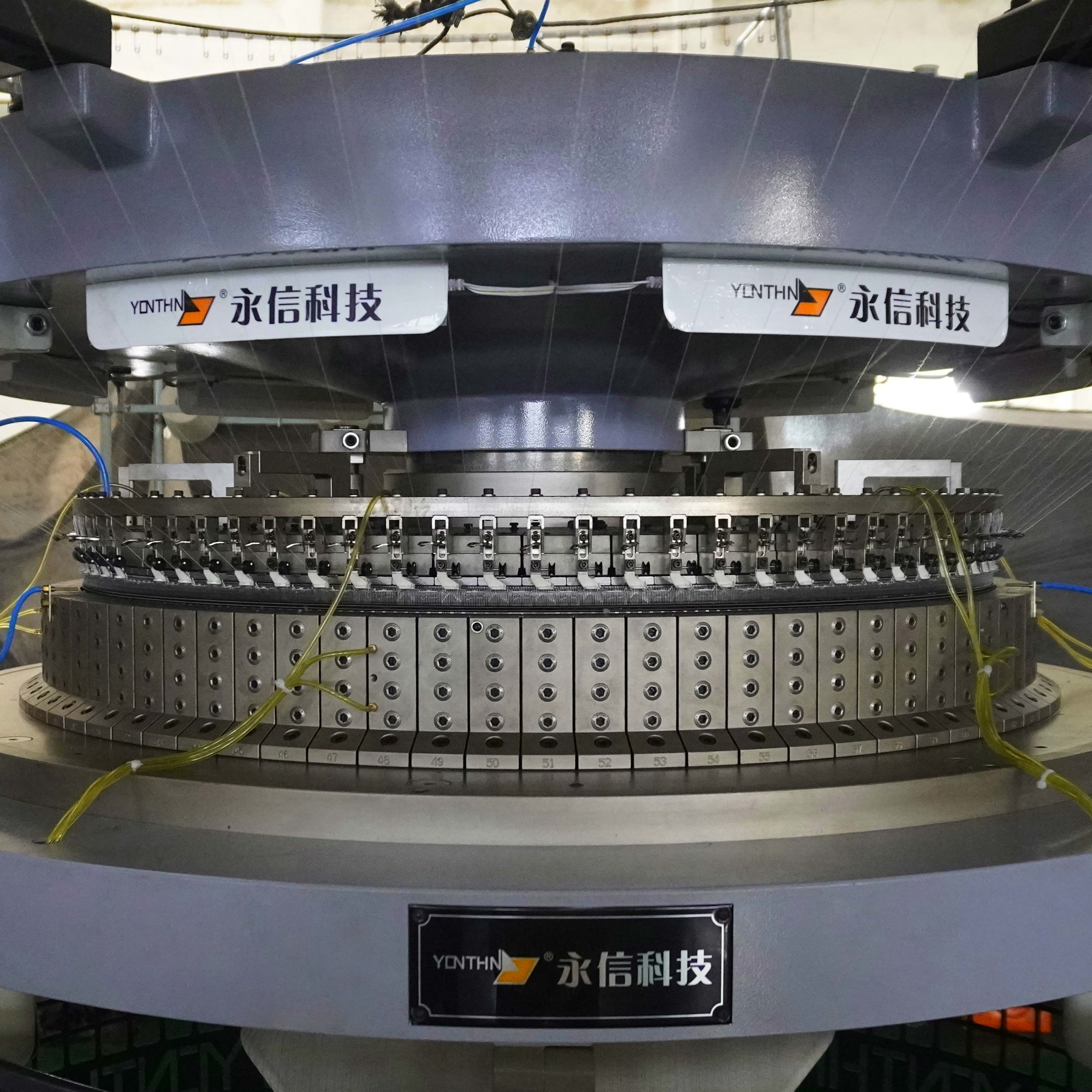

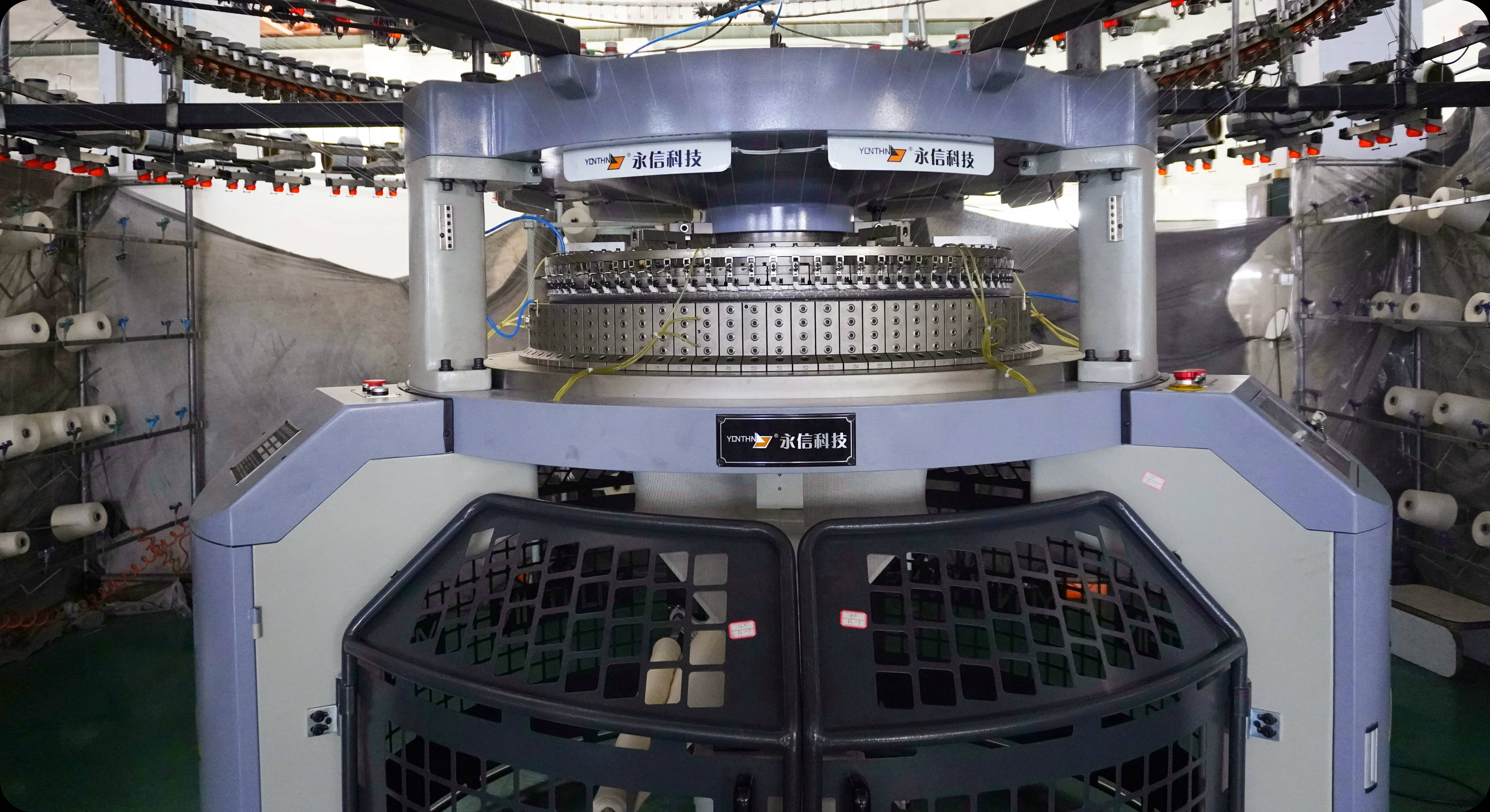

Machine framework
New designed frame with simultaneous displacement for exacter and simpler needle tolerance adjustment.
Central lifting system
Compact structure, smooth lifting, adjusting fabric weight accurately and simply.
Heart components
Strong interchangeability, can be quickly replaced, and easy to operate.

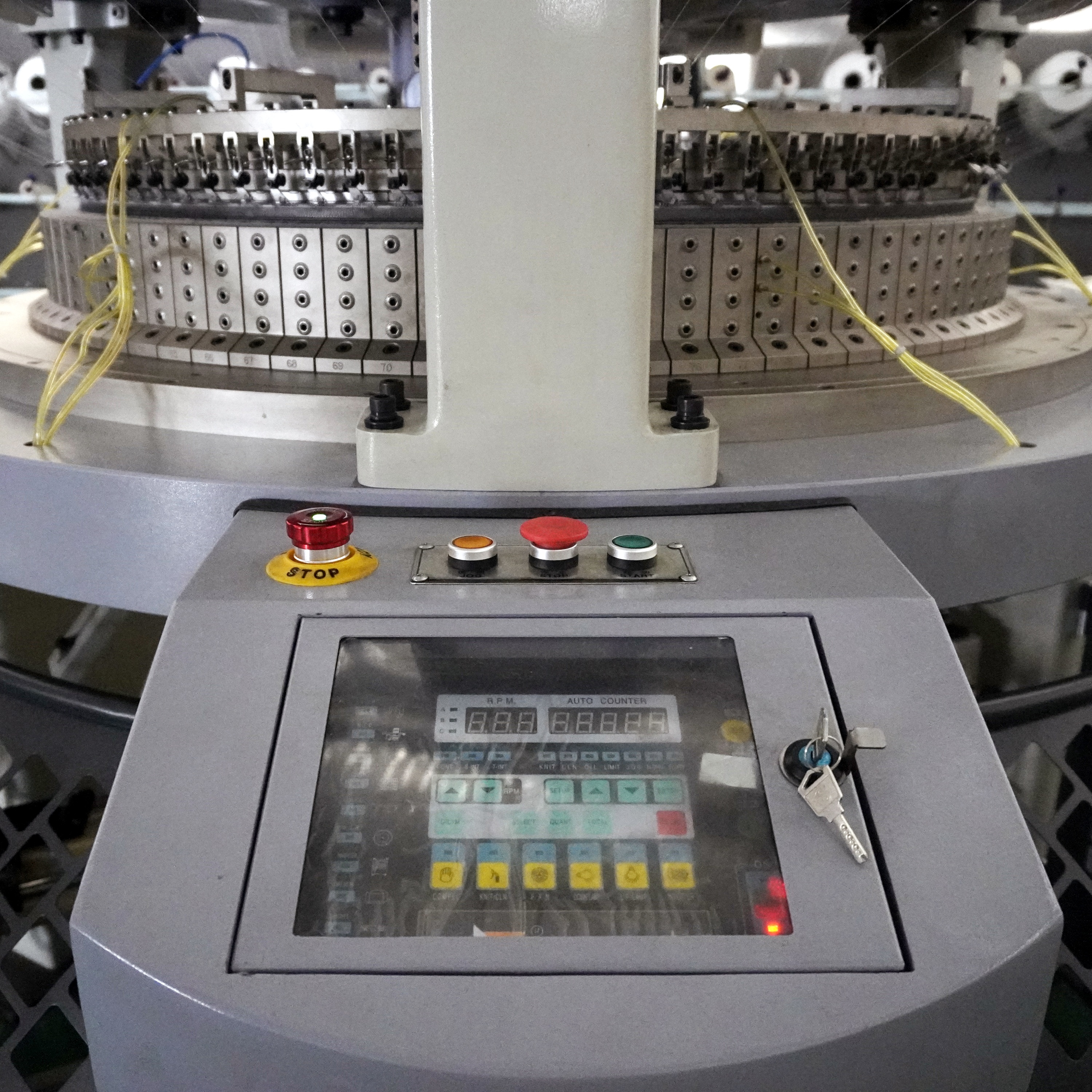

Computer control system
Easy system operation with computerized needle selection and USB pattern input.
Core Machine Advantages
Central lifting system
Compact structure, smooth lifting, precise and simple adjustment of fabric weight.
Heart components
Strong interchangeability, quick replacement, easy to operate.
Computer control system
Easy system operation, computer needle selection system, USB input.
Product Features
- Top and bottom gears adopt oil-soaking to reduce abrasion and noise, then improve their precision and life.
- Adopting new designed frame of the machine, dial cam box base and sleeve have simultaneous displacement for exacter adjustment.
- Multifunctional machine, equipped with cams of 2 tracks in Dia and 4 tracks in Cylinder for changing double structure to meet the market.
Basic Parameters
| Diameters | Feeders | Gauge | RPM |
|---|---|---|---|
| 25"-44" / 2 feeders per inch | 50F-88F | 16G-42G | 15-30 R.P.M |
| 25"-44" / 2.1 feeders per inch | 52F-94F | 16G-42G | 15-30 R.P.M |
| 25"-44" / 2.4 feeders per inch | 60F-106F | 16G-42G | 15-30 R.P.M |
| 30"-44" / 2.8 feeders per inch | 70F-122F | 16G-42G | 15-30 R.P.M |
| 30"-44" / 3.2 feeders per inch | 96F-108F | 16G-42G | 15-30 R.P.M |
Equipment Configuration
| Standard Equipment | Optional Equipment |
|---|---|

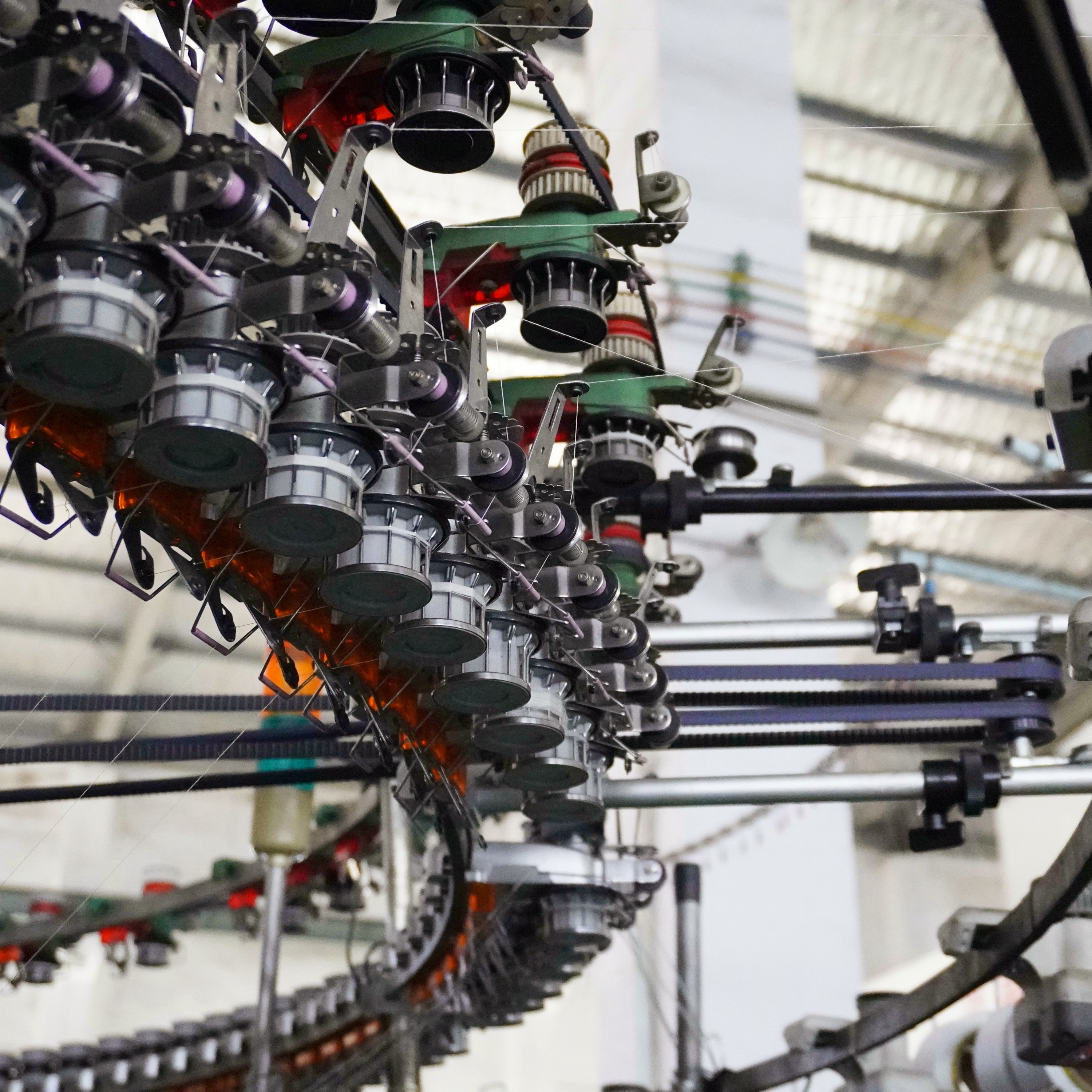

| Positive Feeding Units | Spandex preparation device |
| Automatic Lubrication Device | Lycra Feeding Units |

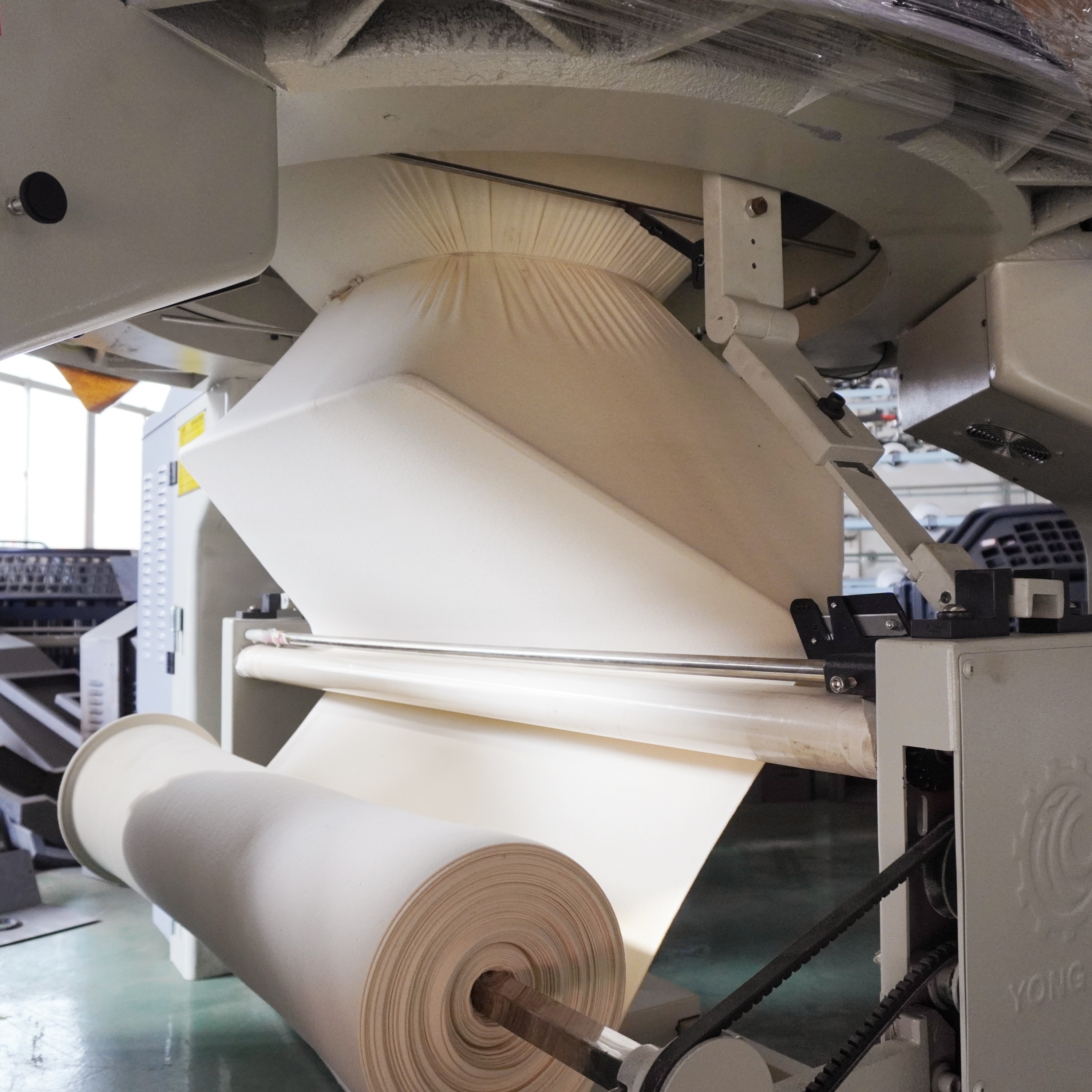

| Take Down System | Folding Device |
| Automatic Cleaning Device | Yarn Input Measuring Device |
| Yarn Creel System | Open Width Frame |
| Central Stitch System |
