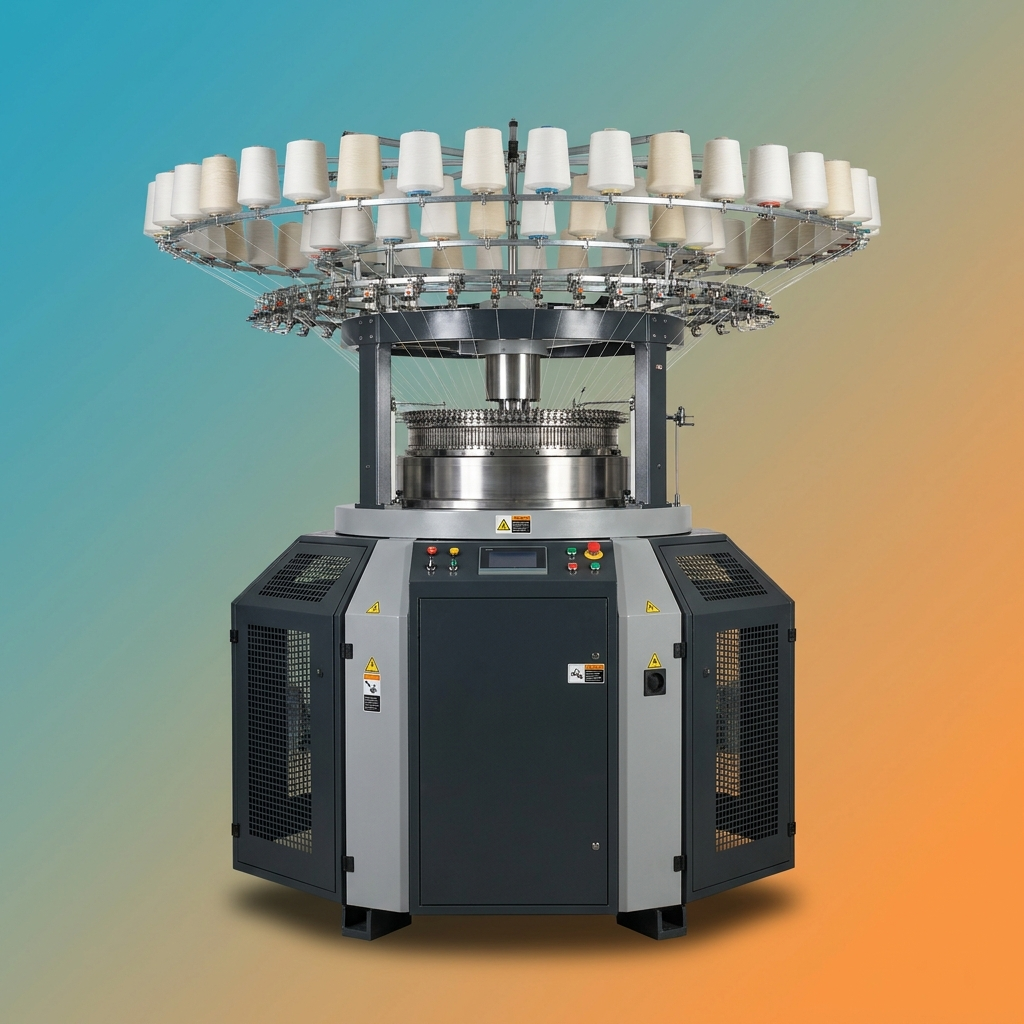

High Speed Single Jersey Knitting Machine
Knitting Machines
High Speed Single Jersey Knitting Machine
Single jersey circular knitting machine with 3 feeders / 3.2 feeders / 4 feeders / 6 feeders per diametrical inch. Cam box design to receive up to 4 cam tracks on the cylinder. Single jersey machine can be converted to terry or fleece machine by changing some parts.
- Can produce silk cotton, polyester cotton, colored striped fabric, and mesh fabrics
- Used for vests, sportswear, T-shirts, yoga suits, and swimming suits
- Advanced equipment support
- Advanced production technology
- High standard quality control
- Multiple optional devices
What can I do with YONTHIN circular knitting machine?
Imagination is infinite, as long as you can imagine, you can knit. Use Yonthin knitted fabric to make vests, T-shirts, sportswear, swimsuits, etc.
Why is it good at knitting?
Every factor affecting knitting accuracy has been taken into consideration. Control system, transmission system, motor, cam, etc. Where you cannot see are details.
Central lifting system
Compact structure, smooth lifting, adjusting fabric weight accurately and simply.
Cam material
Made of imported alloy steel with special heat treatment and CNC machining for smooth, durable needle motion.
Heart components
Strong interchangeability, can be quickly replaced, and easy to operate.
Sinkers
Precision-manufactured sinkers support stable knitting activity and faultless fabric output.
Electric machinery
High-performance motors and electrical systems ensure stable high-speed operation.
Computer control system
Easy system operation with computerized needle selection and USB pattern input.
Core Machine Advantages
Central lifting system
Compact structure, smooth lifting, precise and simple adjustment of fabric weight.
Heart components
Strong interchangeability, quick replacement, easy to operate.
Computer control system
Easy system operation, computer needle selection system, USB input.
Product Features
- The frame combines the knitting principle with human engineering — pretty, firm, and reliable with high-quality cast iron.
- Special driving system with oil-soaking design ensures low running noise and a durable driving gear.
- Strong interchangeability — by changing heart parts, the machine can be converted into a terry or three-thread fleece machine.
- All cams and cam boxes are made of imported Japan alloy steel, engraved and abraded by a CNC processing center.
- New type designed center system has tight construction and stable vertical movement for precise fabric weight adjustment.
- By changing cams with different functions, the machine can produce various fabrics with different single structures.
Basic Parameters
| Diameters | Feeders | Gauge | RPM |
|---|---|---|---|
| 4"-44" / 3 feeders per inch | 12F - 132F | 12G - 50G | 18 - 40 R.P.M |
| 13"-44" / 3.2 feeders per inch | 42F - 140F | 12G - 50G | 18 - 40 R.P.M |
| 13"-44" / 4 feeders per inch | 52F - 176F | 12G - 32G | 18 - 40 R.P.M |
| 30"-44" / 6 feeders per inch | 180F - 264F | 12G - 32G | 18 - 40 R.P.M |
Equipment Configuration
| Standard Equipment | Optional Equipment |
|---|---|
| Positive Feeding Units | Spandex preparation device |
| Automatic Lubrication Device | Lycra Feeding Units |
| Needle And Fabric Detector | Folding Device |
| Take Down System | Yarn Input Measuring Device |
| Automatic Cleaning Device | Open Width Frame |
| Yarn Creel System | Central Stitch System |
