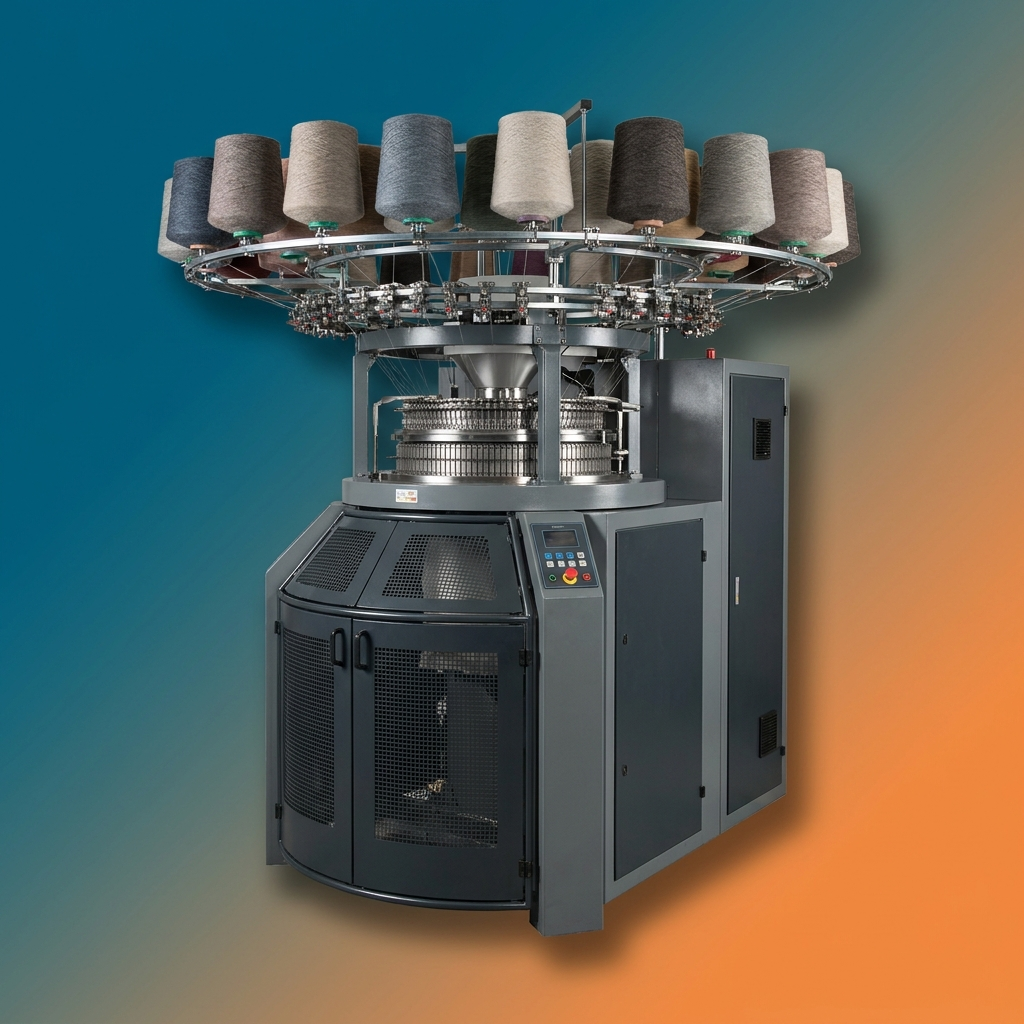

High Speed Three-Thread Fleece Knitting Machine
Knitting Machines
High Speed Three-Thread Fleece Knitting Machine
Three-thread fleeces knitting machine with 3 kinds of feeders per circle Cam. Box design to receive up to 4 cam tracks on the cylinder. Suitable for all cotton hoodies, silk hoodies, stretch hoodies and other fabrics. By changing heart part, it can be converted to single jersey machine.
- Advanced equipment support
- Advanced production technology
- High standard quality control and inspection
- Multiple optional devices
- High working speed
What can I do with YONTHIN circular knitting machine?
Imagination is infinite, as long as you can imagine, you can produce. Yonthin is very suitable for fabrics such as cotton hoodies, silk hoodies, and stretch hoodies.
Why is it good at knitting?
Every factor affecting knitting accuracy has been taken into consideration. Control system, transmission system, motor, cam, etc. Where you cannot see are details.

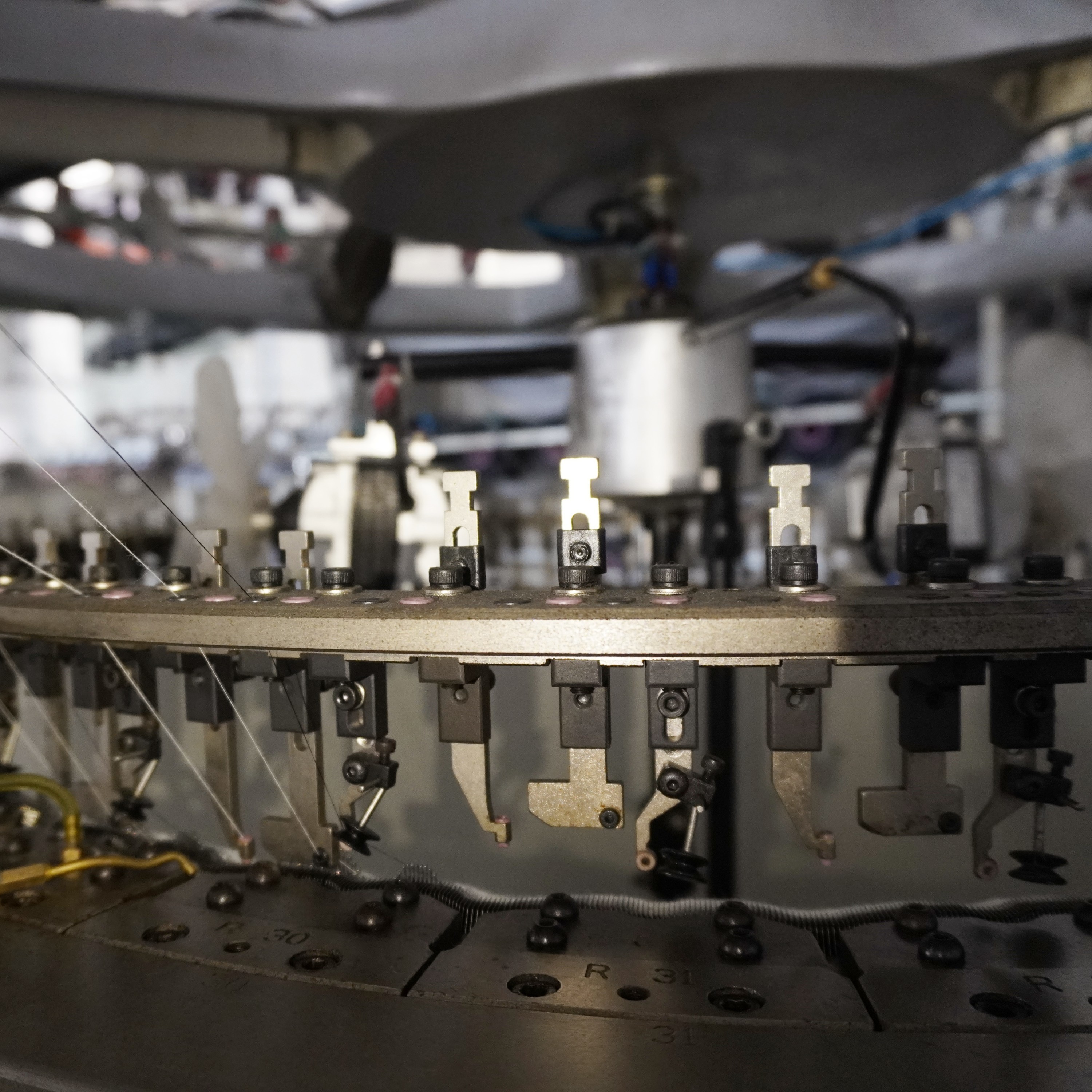

Sinkers
Reduce winding tension, move smoothly on a flat surface, and make the fabric uniform to achieve perfect quality.
Central lifting system
Compact structure, smooth lifting, adjusting fabric weight accurately and simply.

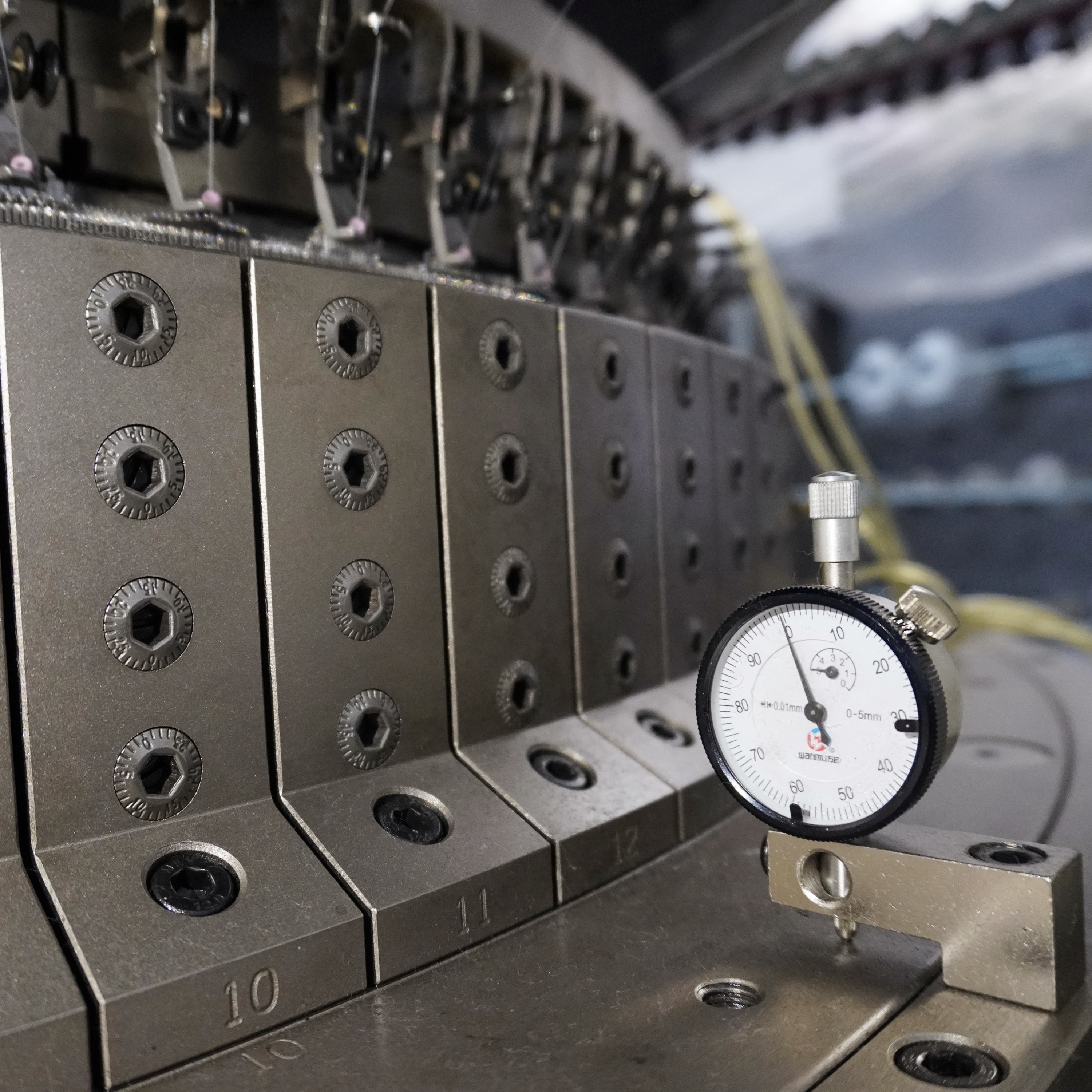

Cam material
Made of imported alloy steel with special heat treatment and CNC machining for smooth, durable needle motion.
Heart components
Strong interchangeability, can be quickly replaced, and easy to operate.
Electric machinery
High-performance motors and electrical systems ensure stable high-speed operation.
Computer control system
Easy system operation with computerized needle selection and USB pattern input.
Core Machine Advantages
Central lifting system
Compact structure, smooth lifting, precise and simple adjustment of fabric weight.
Heart components
Strong interchangeability, quick replacement, easy to operate.
Computer control system
Easy system operation, computer needle selection system, USB input.
Product Features
- Special cam system design enables knitting different fabric by different type yarn (cotton fleece, cotton polyester fleece, elastic fleece).
- By changing some parts, the machine could be changed into single jersey, operate easily.
- Newest frame design makes the machine run more stably.
Basic Parameters
| Diameters | Feeders | Gauge | RPM |
|---|---|---|---|
| 34"-42" ∕ 3.2 feeders per inch | 96F-134F | 16G-22G | 20-26 R.P.M |
| 34"-44" ∕ 3.2 feeders per inch | 96F-134F | 16G-22G | 20-26 R.P.M |
Equipment Configuration
| Standard Equipment | Optional Equipment |
|---|---|
| Positive Feeding Units | Yarn Input Measuring Device |
| Needle And Fabric Detector | Folding Device |
| Take down system | Central Stitch System |
| Automatic Cleaning Device | |
| Yarn Creel System |
