YX-Q Flat Knitting Machine Series
The YX-Q series equipment is a fully formed computerized flat knitting machine independently developed by YONTHIN Technology, which is highly efficient, stable, and easy to use. It is widely used for weaving integrated woolen sweaters, seamless hats, scarves, socks, gloves, and more.
- In "YX-Q", "YX" represents YONTHIN, and "Q" represents fully formed
- Remote Control
- Online Centralized Monitoring
- Pattern Design System
- Efficient production
- Cost saving
- Product diversity
- Stable quality
- Energy conservation and environmental protection
What can I do with YONTHIN knitting machine?
Imagination is infinite, as long as you can imagine, you can knit. Yonthin is widely used in weaving integrated woolen sweaters, seamless hats, scarves, socks, gloves, etc.
Why is it good at knitting?
Every factor affecting knitting accuracy has been taken into consideration. Control system, transmission system, motor, cam, etc. Where you cannot see are details.

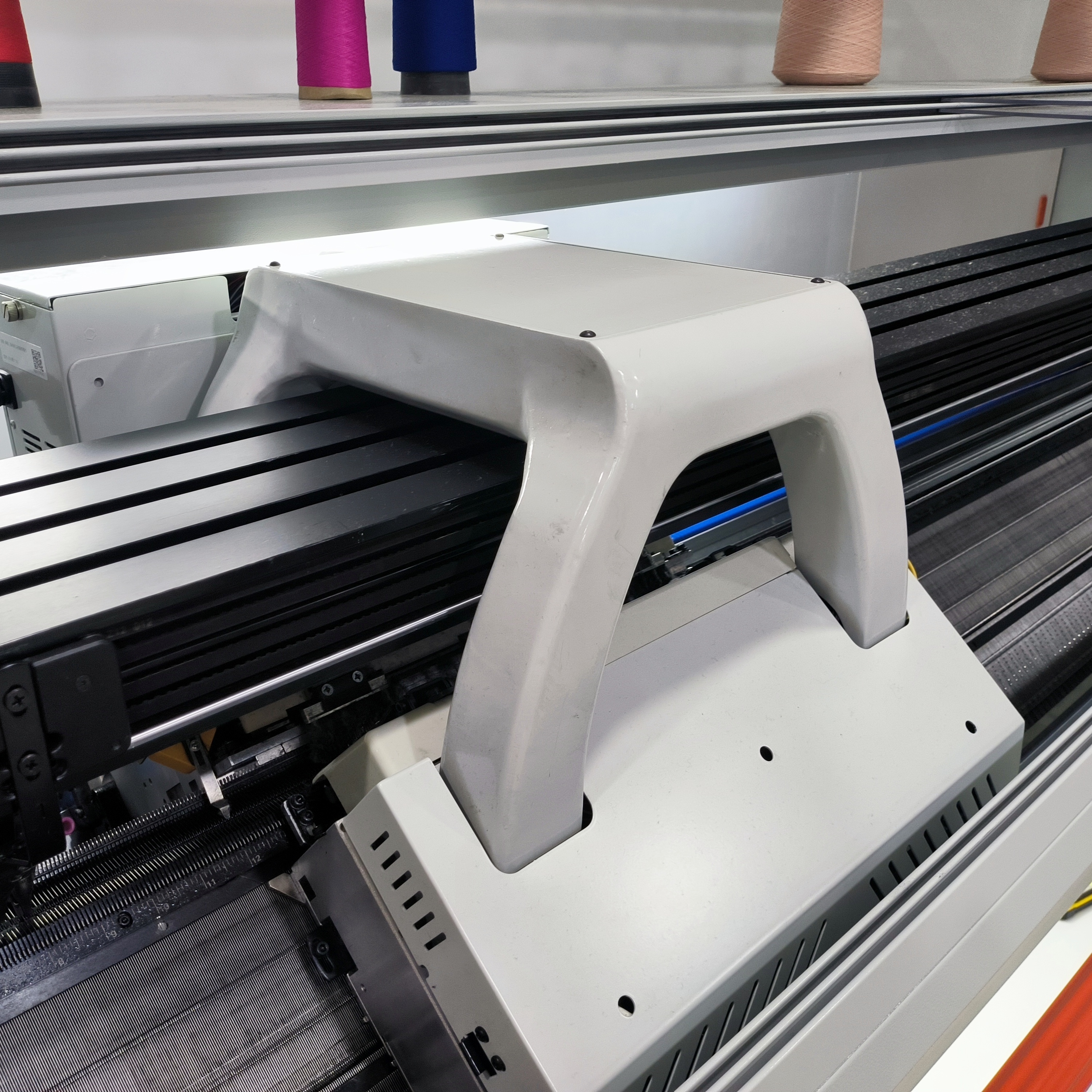

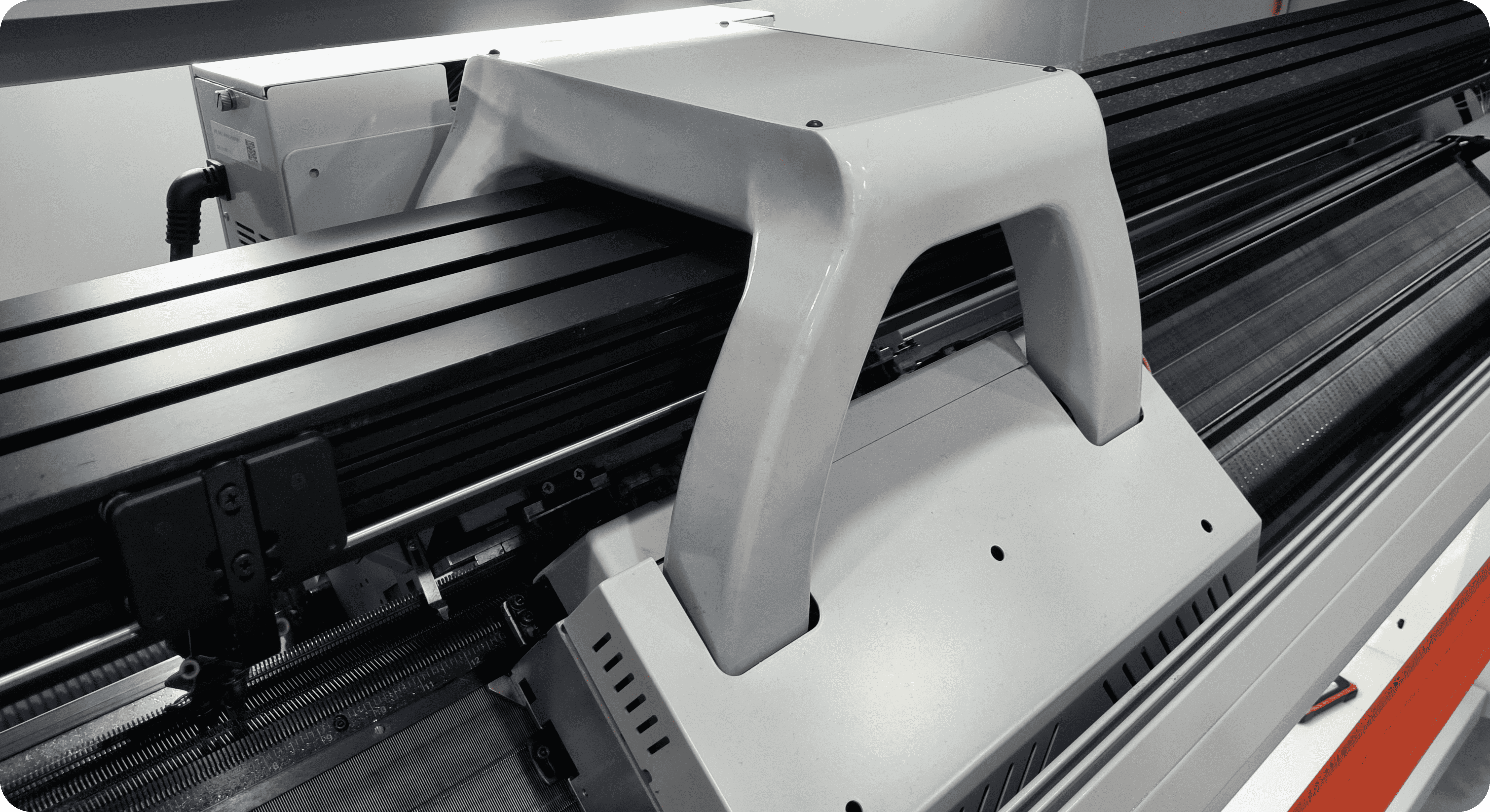

Machine head
Fully electric, small machine head, light weight. Equipped with a rapid rotation machine head system.

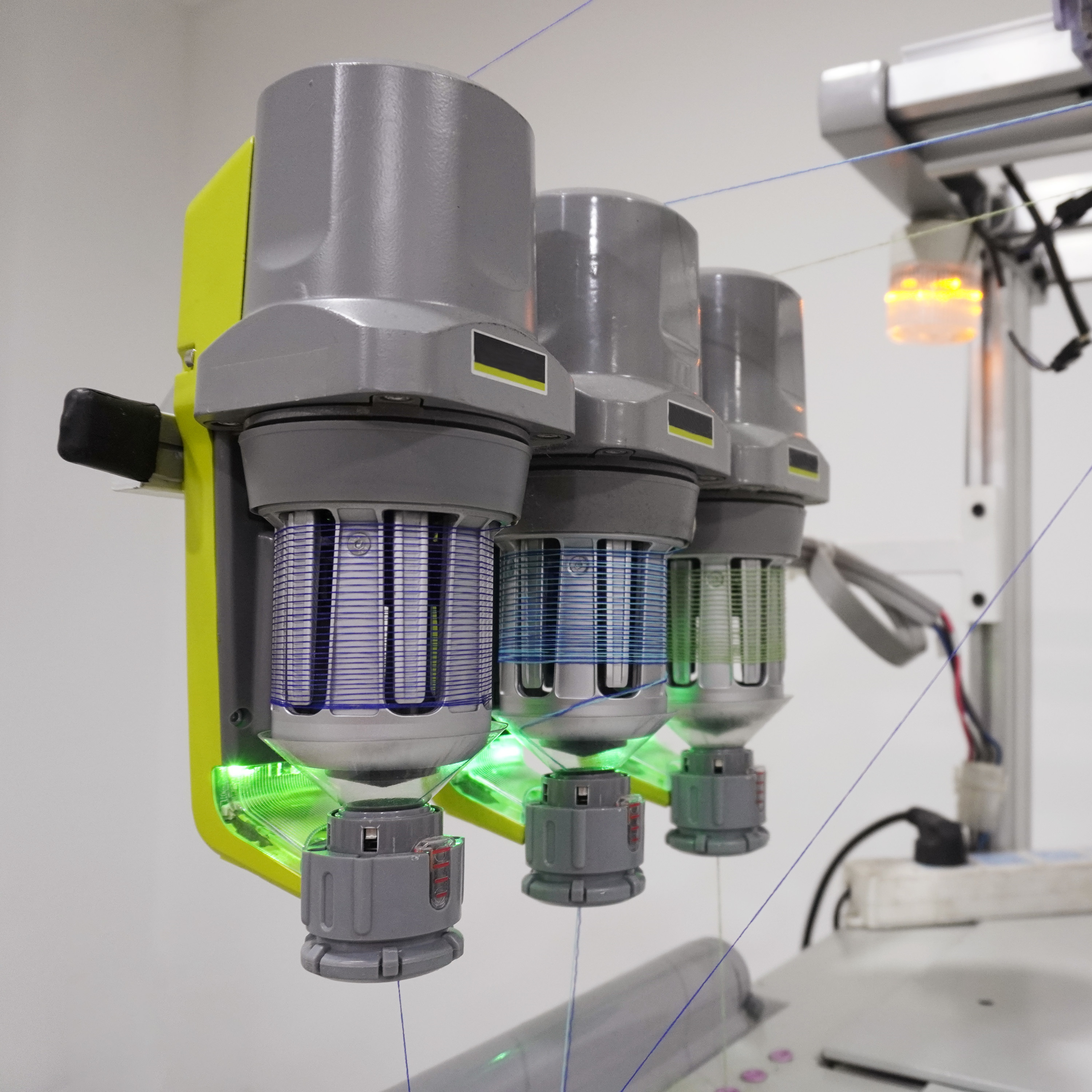

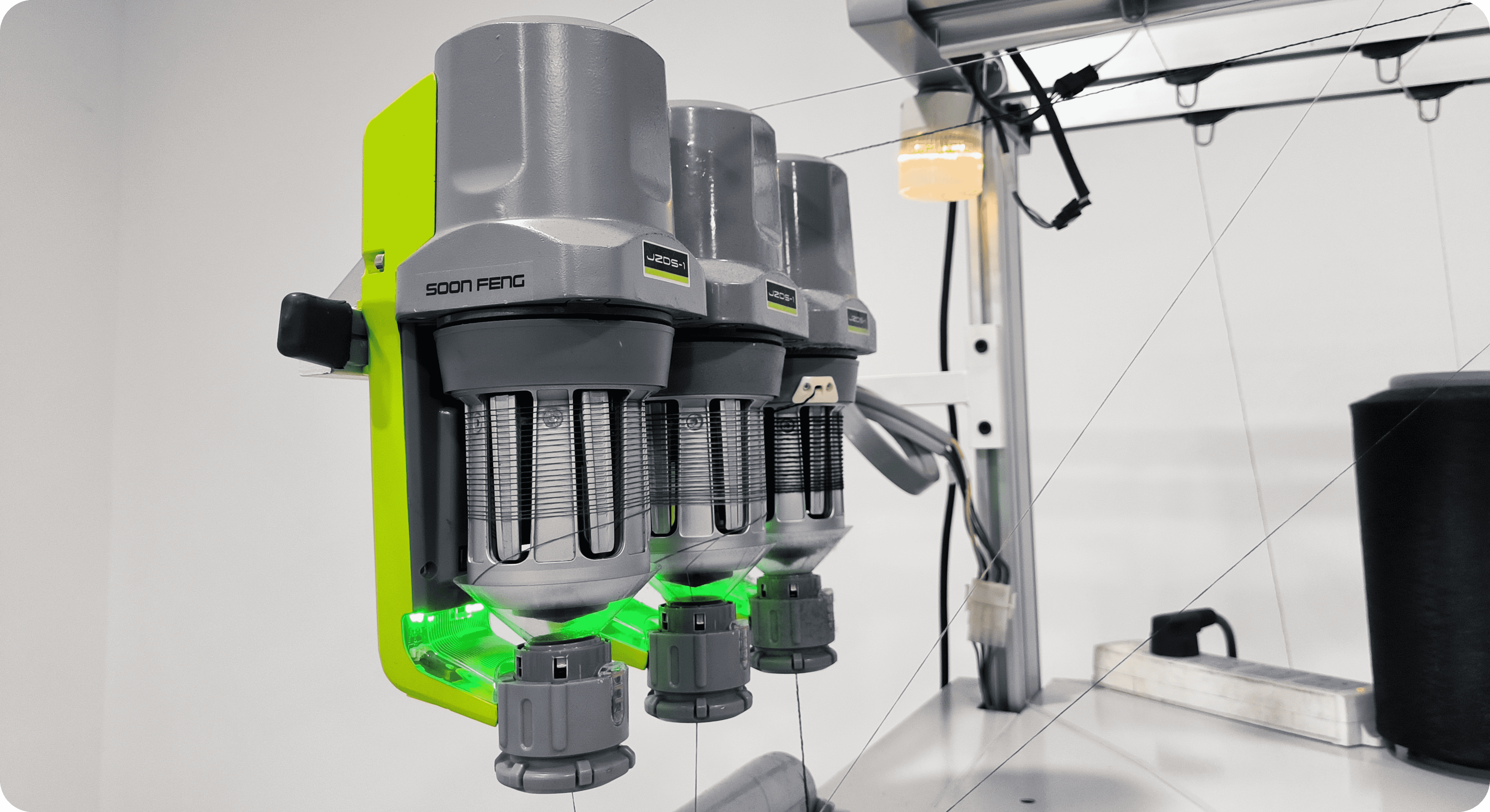

Yarn storage device
Sensor monitoring, anti-winding device, and magnetic tension device reduce yarn resistance during transportation.

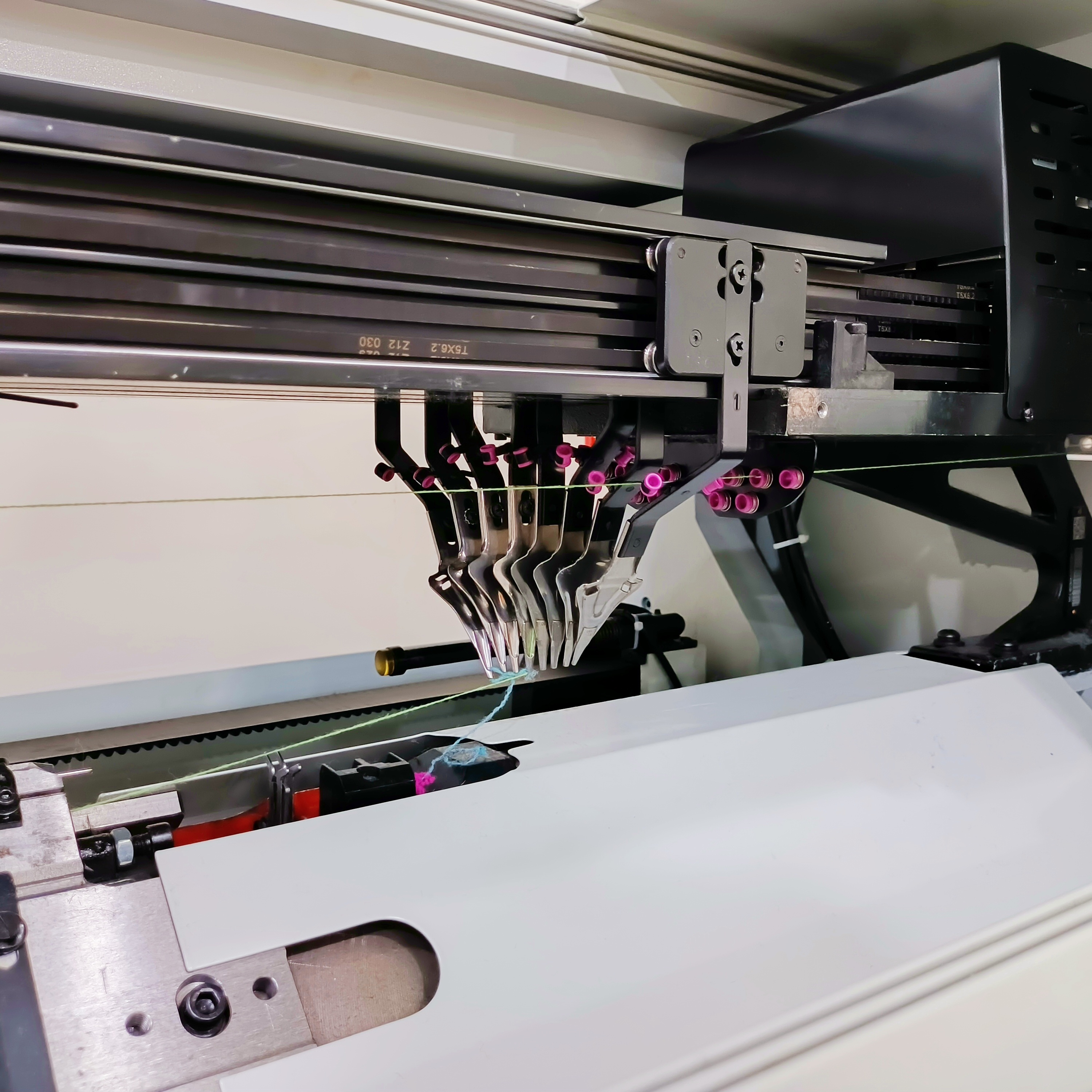

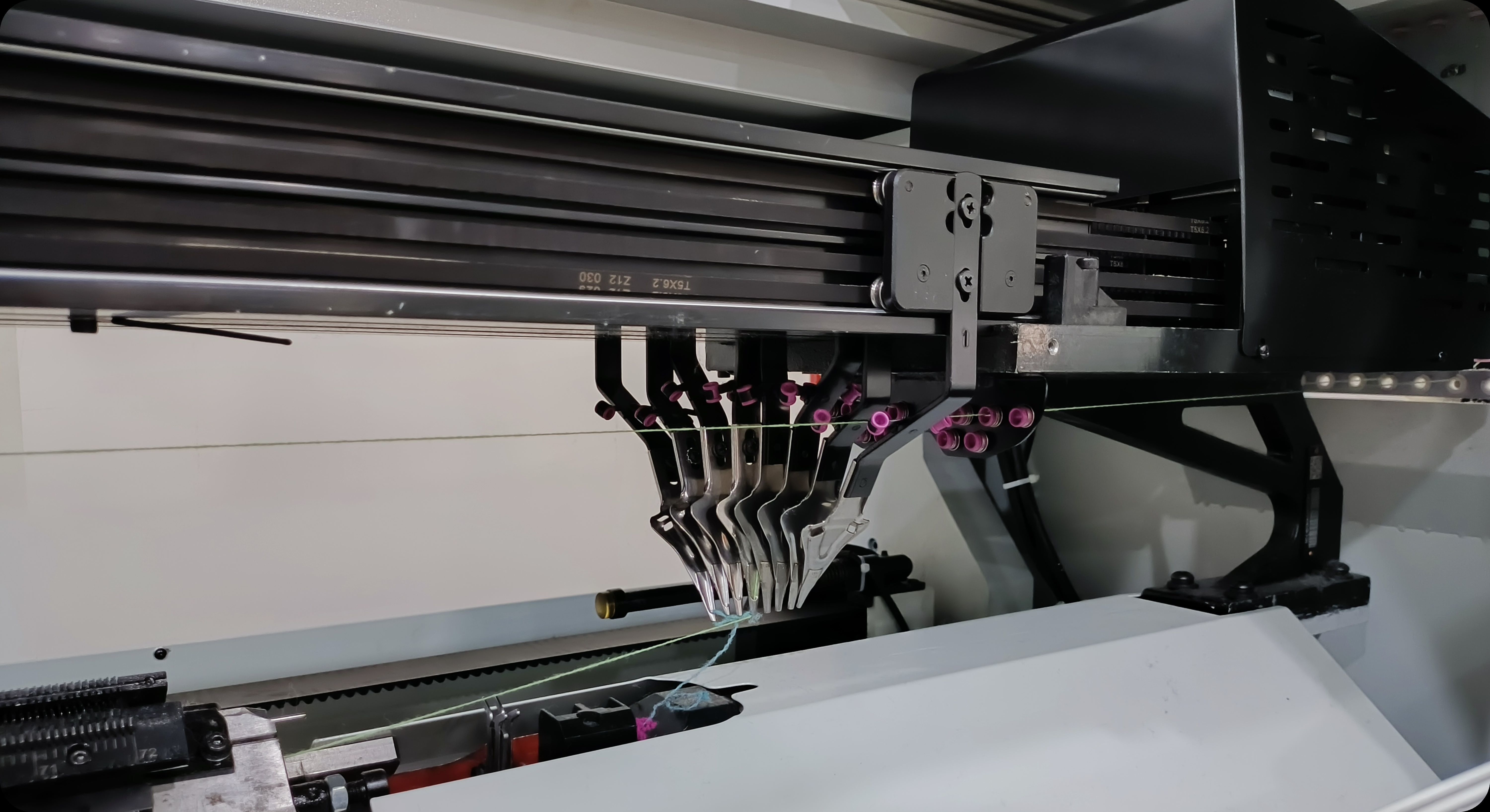

Motorized yarn feeder
Horizontal free movement with encoder precise feedback control enables specific pattern weaving, reduced head travel, and fast, precise positioning.

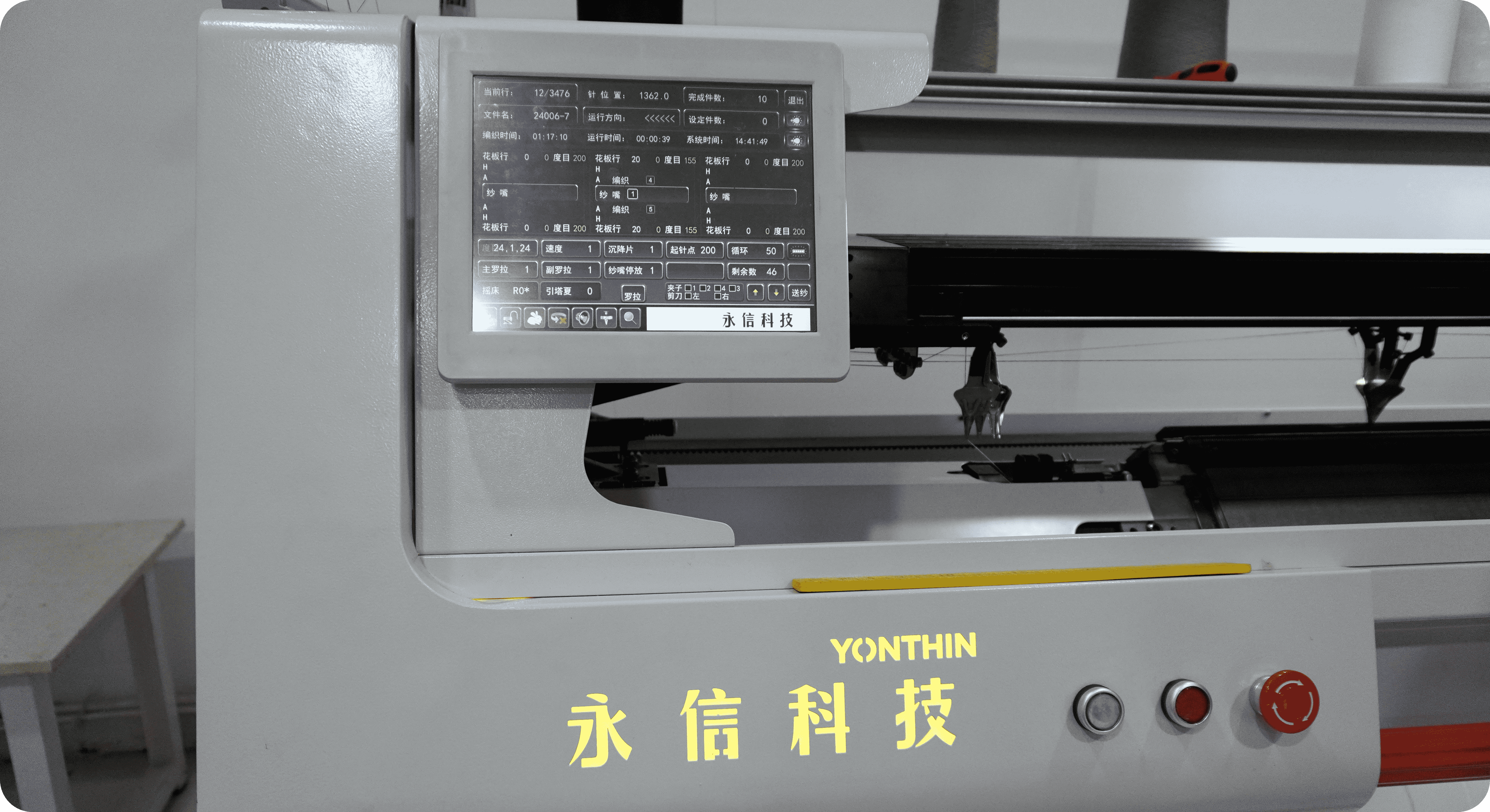

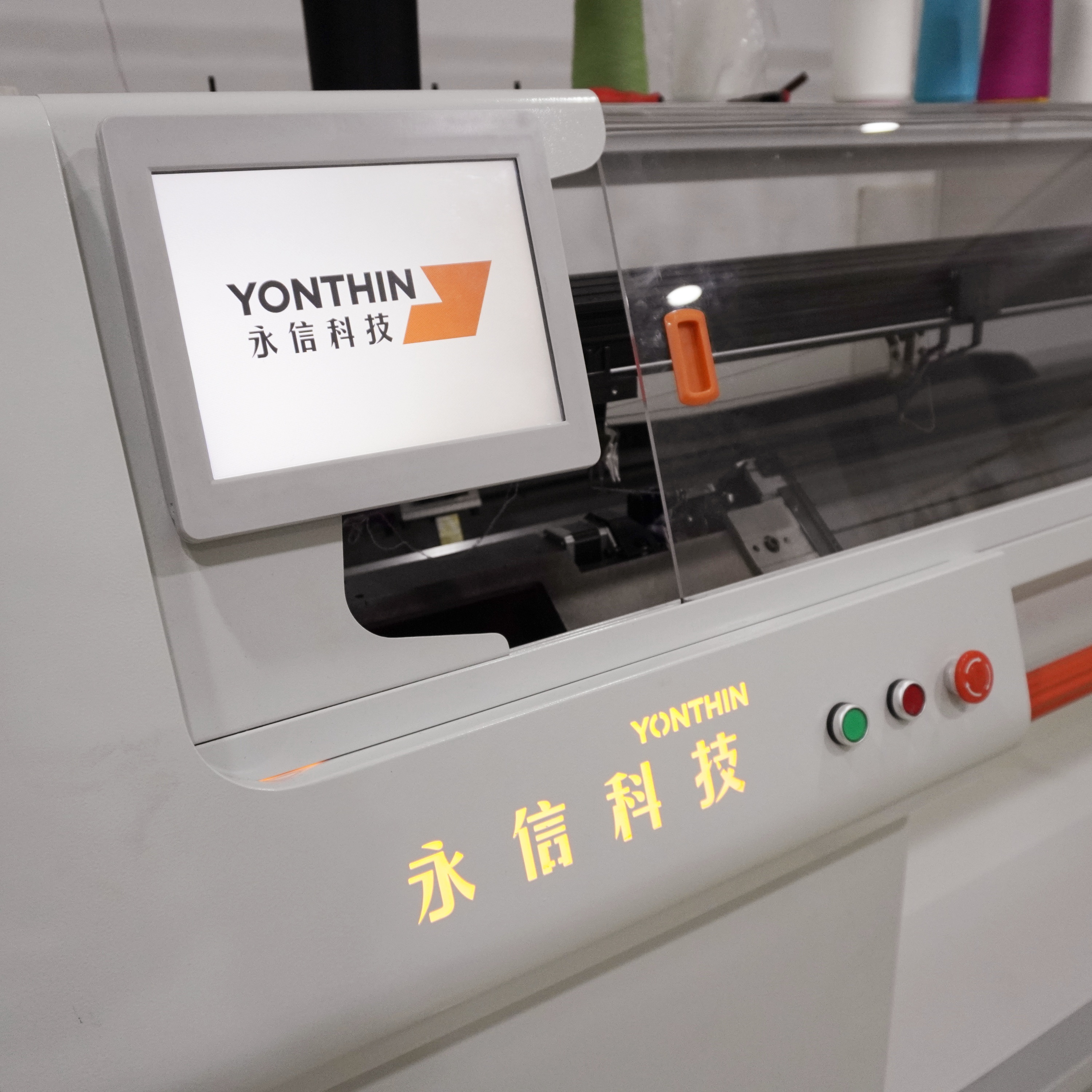

Control System
LCD touch screen with USB and network transmission, multi-language version, monitoring screen, and easy upgrades.

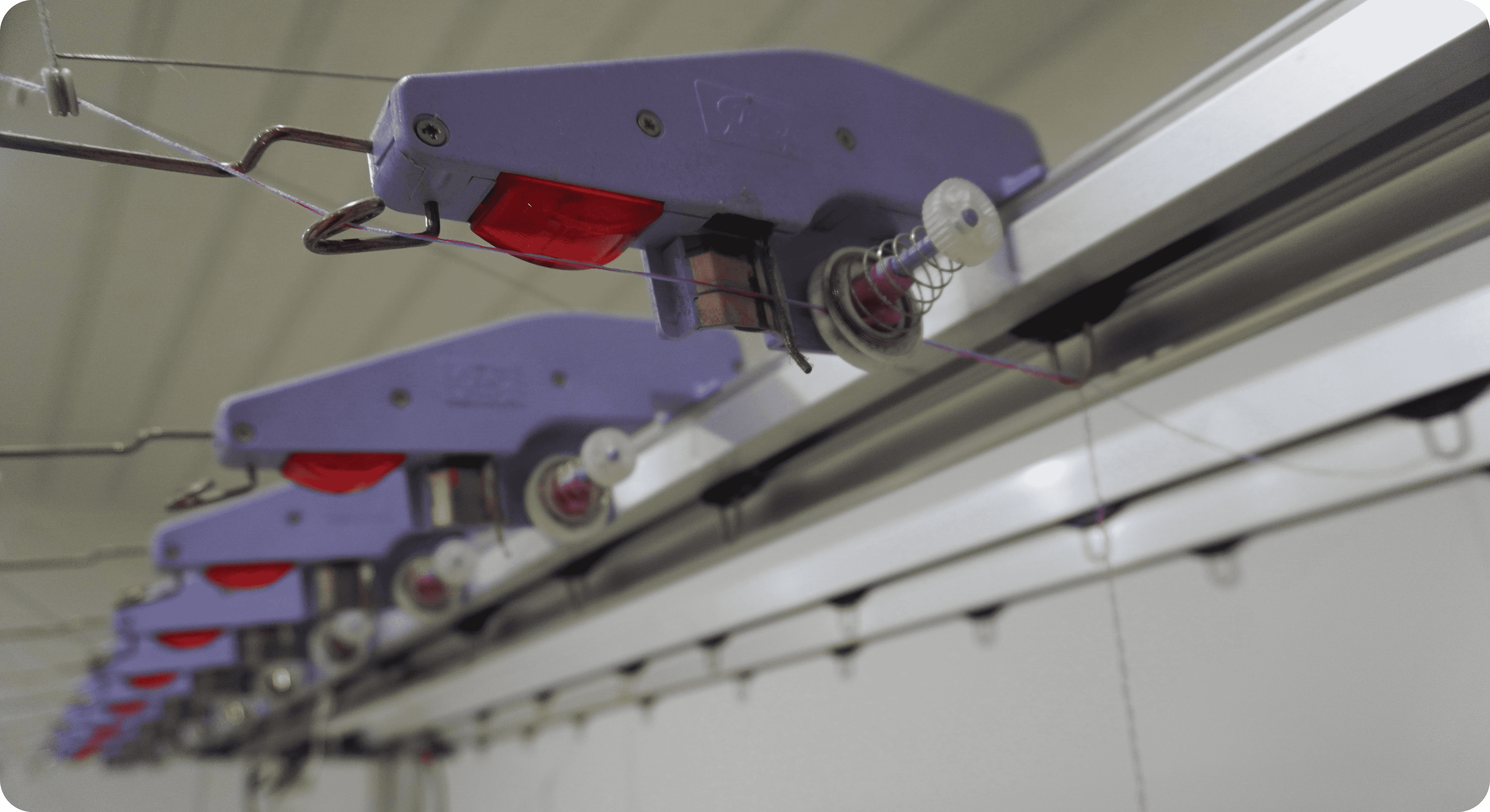

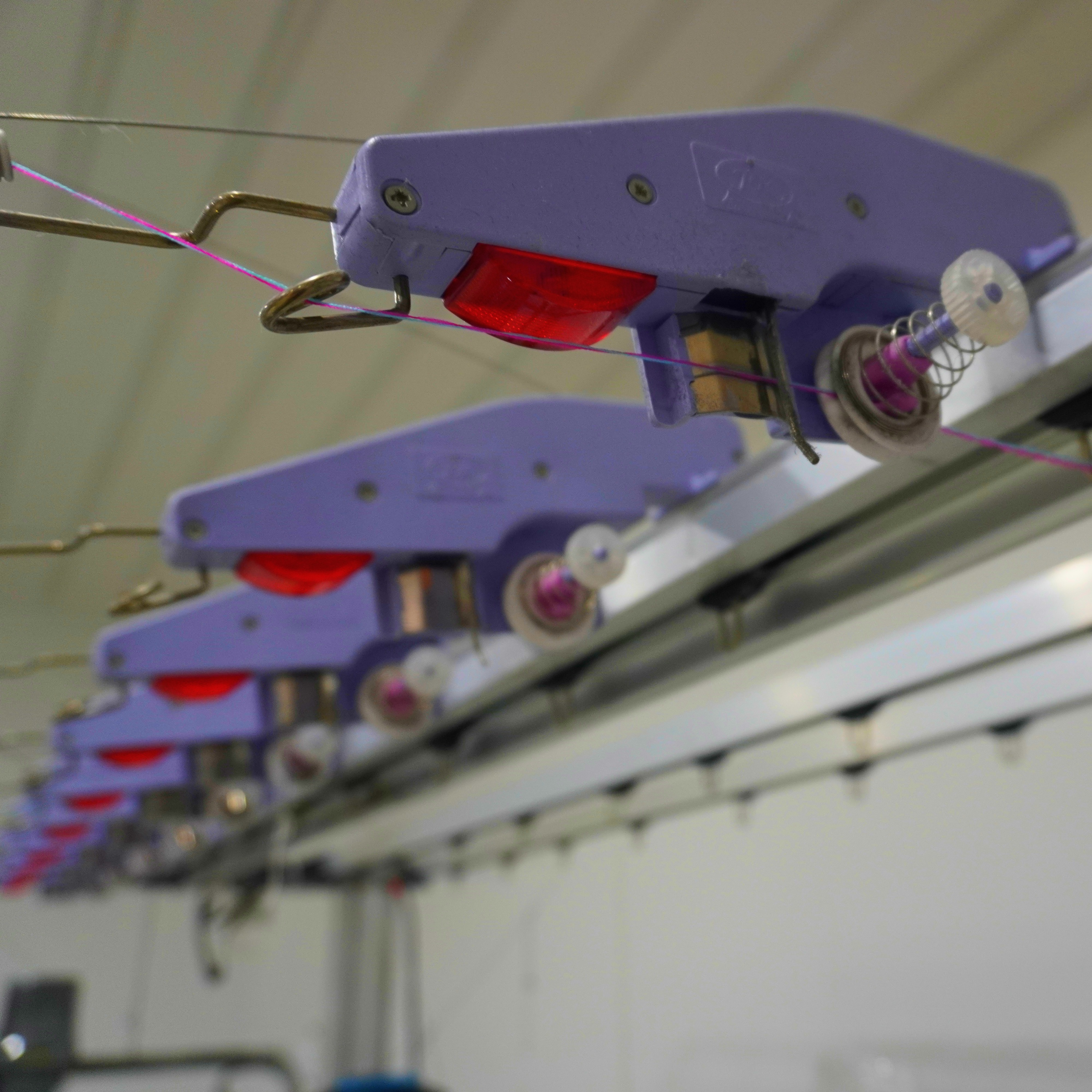

Antenna station
Sunken antenna station that stops or slows for large and small knots and automatically recovers speed.
Product Features
- Efficient production with dense needle combination
- Cost saving through fully-formed (Knit & Wear) technology
- Product diversity (integrated sweaters, hats, socks, gloves)
- Stable quality with three-system single-head configuration
- Intuitive CNC operating interface for easy use
- Energy conservation and environmental protection design
Basic Parameters
| MODEL | STITCH LENGTH | NEEDLES / BREADTH |
|---|---|---|
| YX-Q G12 | 12G | 12-needle / 88-inch |
| YX-Q G14 | 14G | 14-needle / 88-inch |
| YX-Q G16 | 16G | 16-needle / 88-inch |
| YX-Q G18 | 18G | 18-needle / 88-inch |
* Machine speed: segmental adjustment, maximum 1.6m/s with 255 programmable speed segments. Braiding system: single-head and three-system. Shaking table: motor driven, maximum 2 inches.
